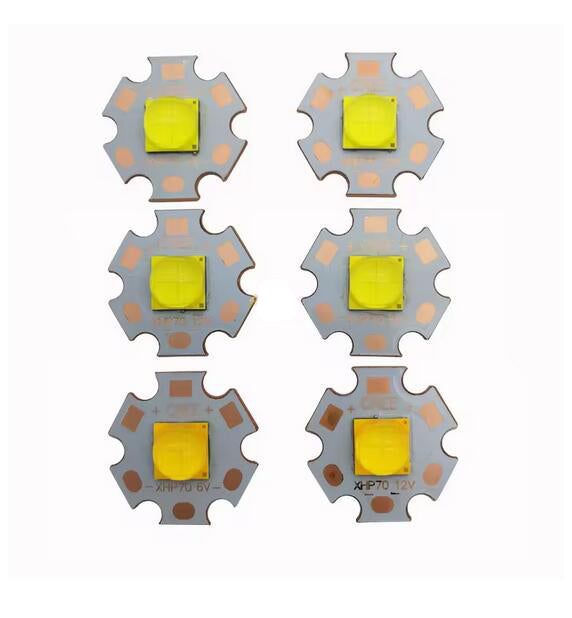

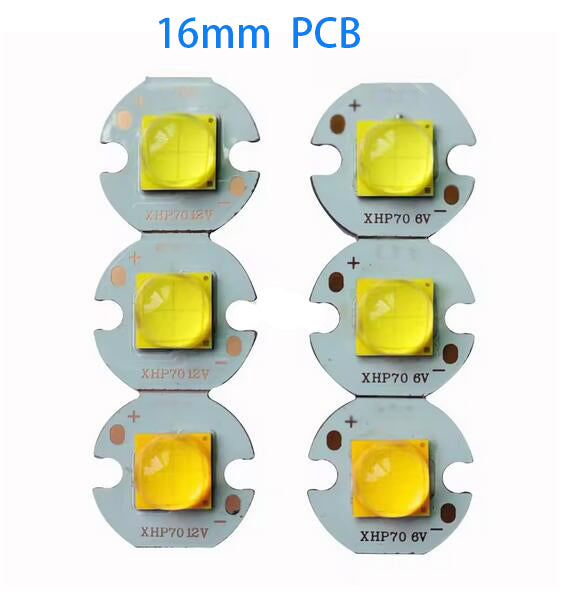

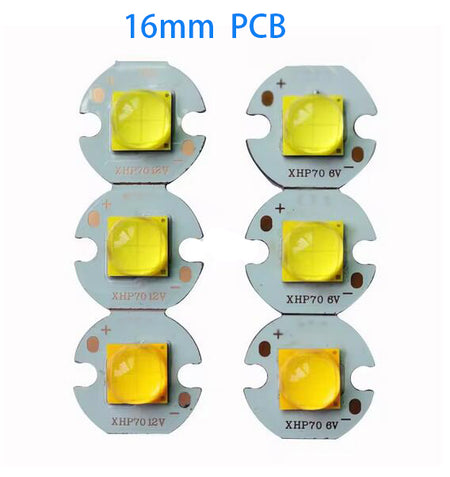

Original XHP70.2LED 4000 Lumen High Power LED Emitter 3000K to 6000K White 6V/12V 20mm/16mm DTP Copper PCB For Flashlight
Regular price
$15.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
NOTE: It is Original LED Chip,not fake leds
The XHP70.2LEDs is the next generation of Extreme High Power LEDs that deliver the lowest system cost through the best lumen density, reliability and color consistency. Built on latest high power LED technology, the XHP70.2LED improves the lumen density, voltage characteristics, reliability and optical performance of the XHP70LED in the same 7.0mm x 7.0mm package. The new XHP70.2LED provides an easy drop-in upgrade to achieve higher system LPW for lighting manufacturers with existing designs, eliminating redesign costs. Its unparalleled lumen density and longer lifetime at higher operating temperatures also enables new and innovative lighting designs at lower system costs.
Next Generation of Extreme High Power LEDs
| Size | 7 x 7 mm |
|---|---|
| Product Options | 6 V 12 V High-CRI |
| Maximum Drive Current | 4.8 A (6 V) 2.4 A (12 V) |
| Max Power (W) | 29 W |
| Max Light Output (lm) | 4292 lm |
| Maximum Efficacy at Binning Conditions (lm/W) |
181 lm/W |
| Typical Forward Voltage | 5.6 V White 2100 mA (6 V) 11.2 V 1050 mA (12 V) |
| Viewing Angle | 125 ° |
| Binning | 85°C ANSI (White) 2- 3- and 5-Step |
| Reflow Solderable | Yes JEDEC J-STD-020C-compatible |
| Thermal Resistance | 0.9 °C/W |
| RoHS-Compliant | Yes |
