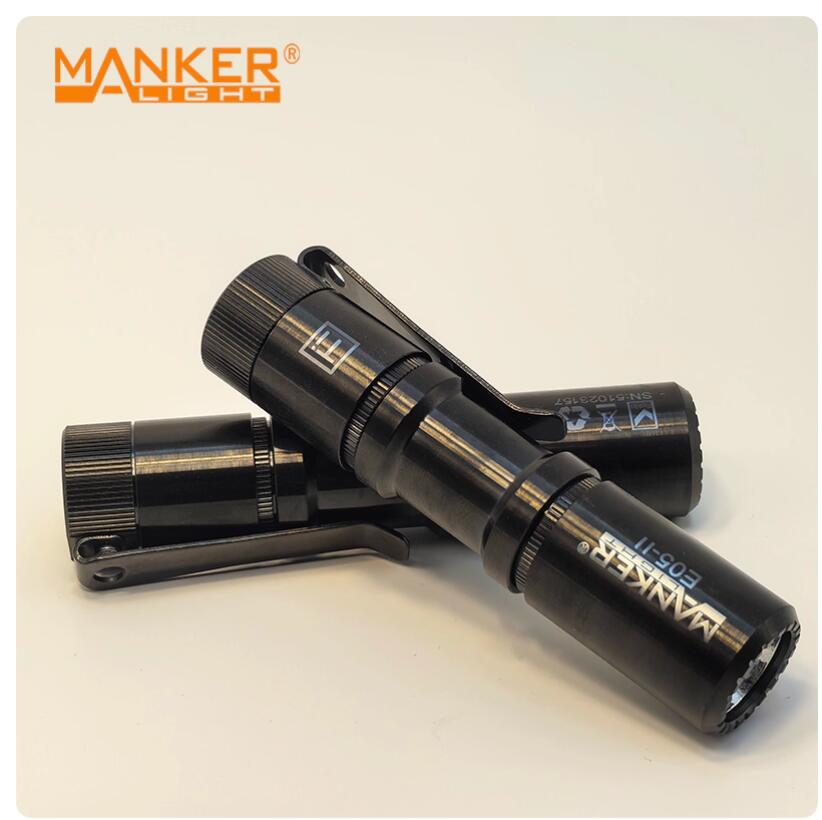

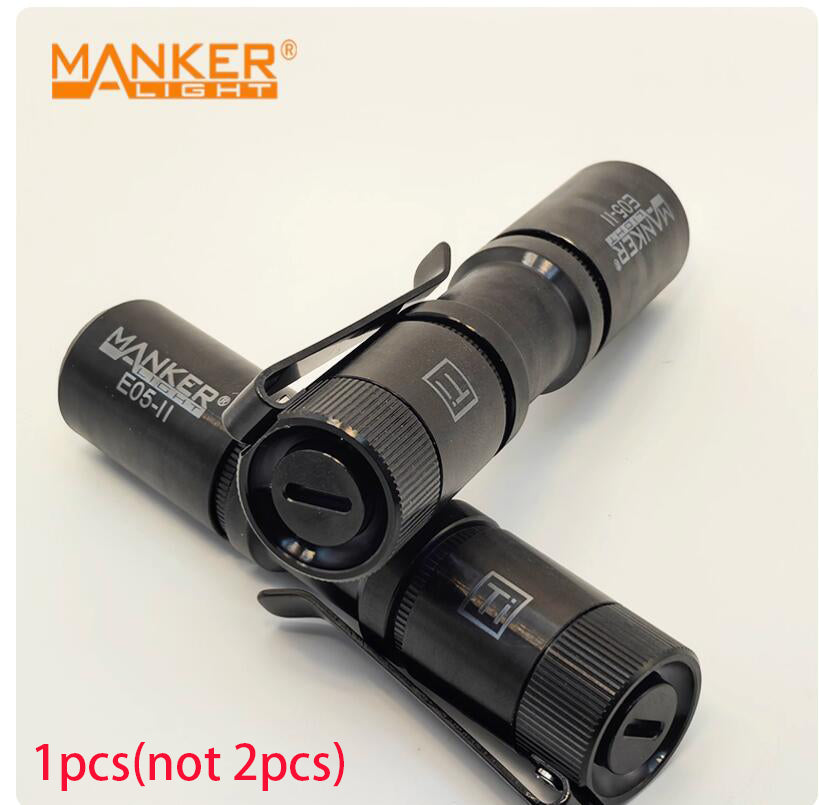

Mankerlight E05 II Black Titanium EDC LED Flashlight 800/1300 Lumen 14500 AA Torch

Customized Color

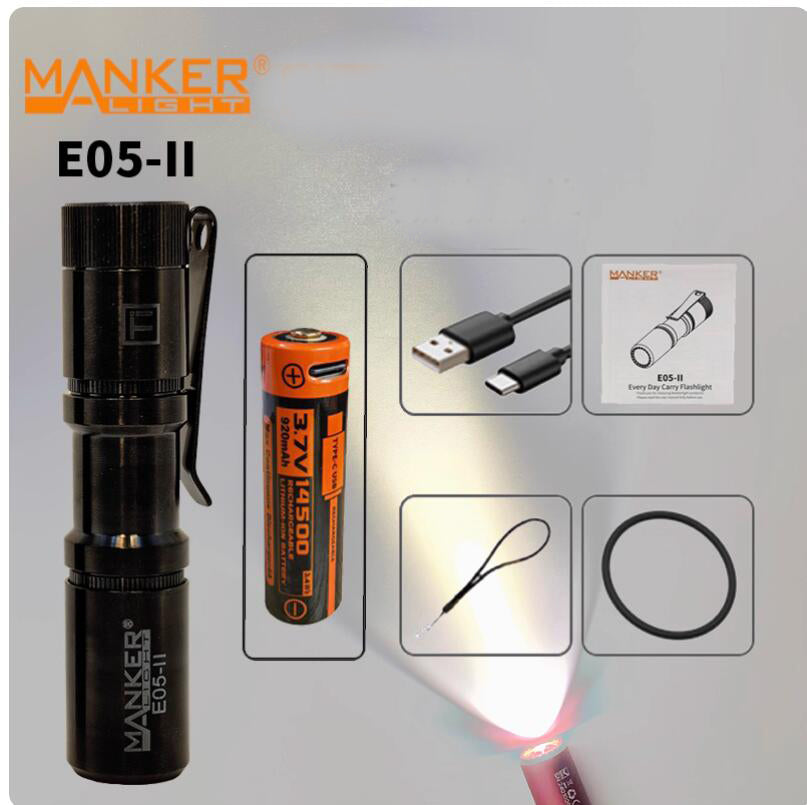

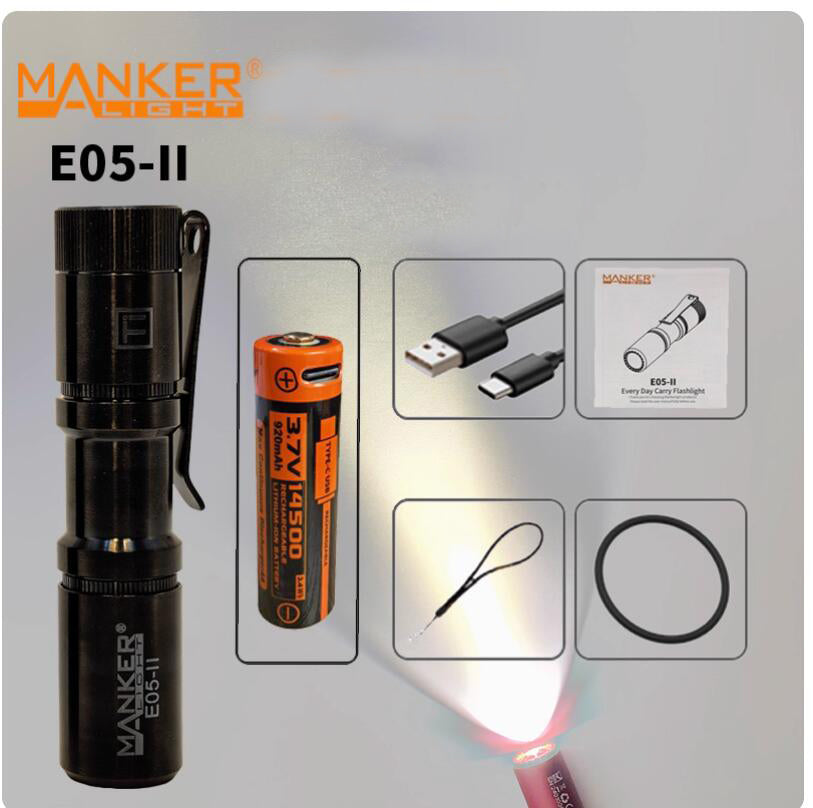

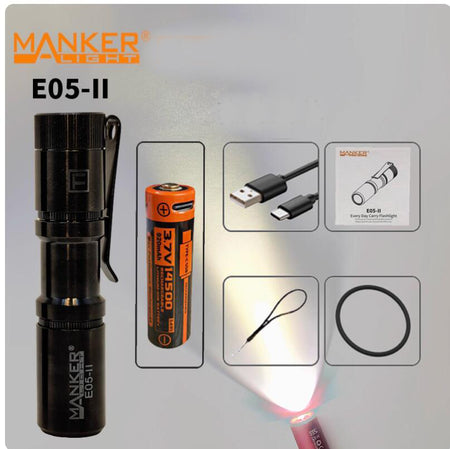

Package List:

1x Mankerlight E05 II LED flashlight

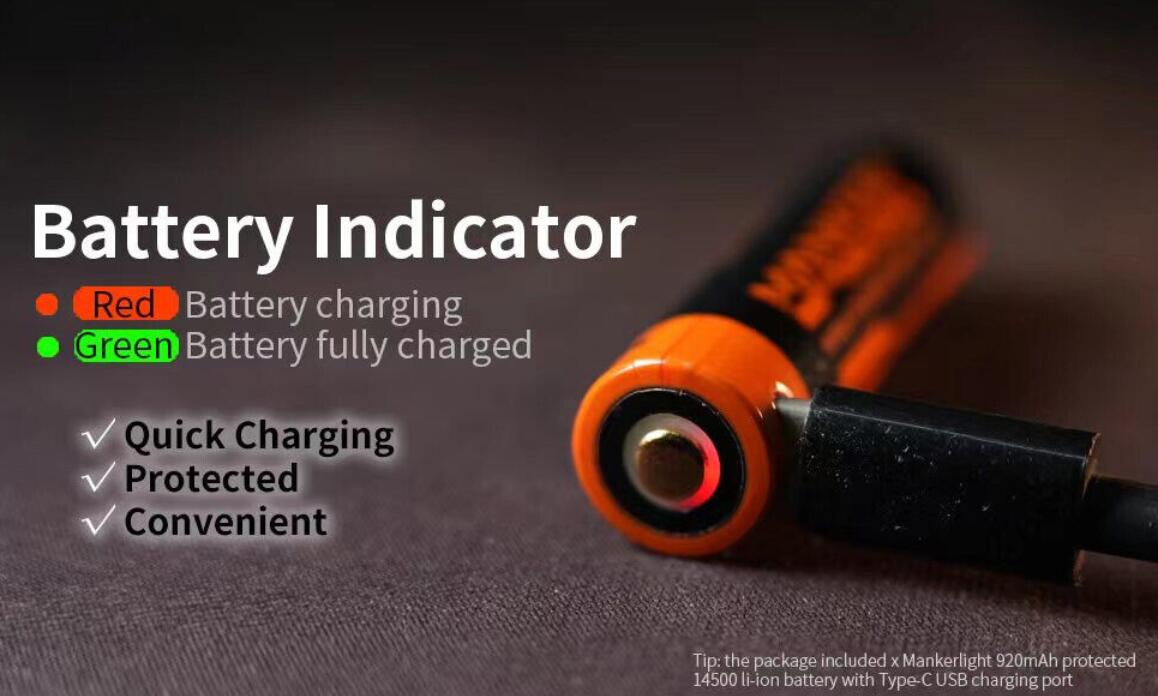

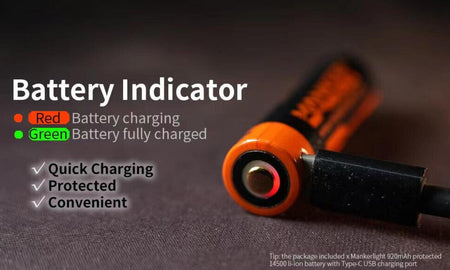

1x 14500 920mAh battery with USB Type C Charging port
1x Type-C USB charging cable
1x Lanyard
1x Spare waterproof o-ring
1x User manual

Manker E05 II (6500K/4000k High CRI) Compact EDC Flashlight -

Ultra-compact Size, lightweight for perfect everyday carry. Multi-fuel design:14500 li-ion, Ni-MH AA, Alkaline AA. Extreme performance in its class (800 lumens illumination / Constant current/ 105° beam angle/120 meters beam distance). IP68 waterproof rated,real tested 2 meters underwater for 60 minutes & 1.5 Meters Drop-resistant. High-cost, durable construction & engineering. Single tail-switch control for one-handed operation, 304 stainless steel deep carry clip design. Versatile usage applicable

Specifications
• Light source: 1x 6500K cool white LED emitter
• Light Modes: Low - Medium - High + Strobe
• Output: 1300 lumens - 300 lumens - 8 lumens + 1300 lumens (20Hz) (powered by 14500 USB-C Li-ion Battery)
• Runtime: 2 minutes +1 hours+4 hours - 1hours 30 minutes + 3hours 50 minutes - 50 hours (powered by 14500 USB-C Li-ion Battery)

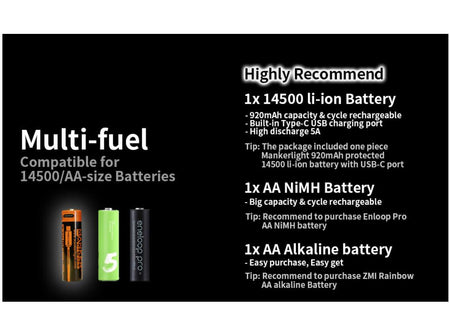

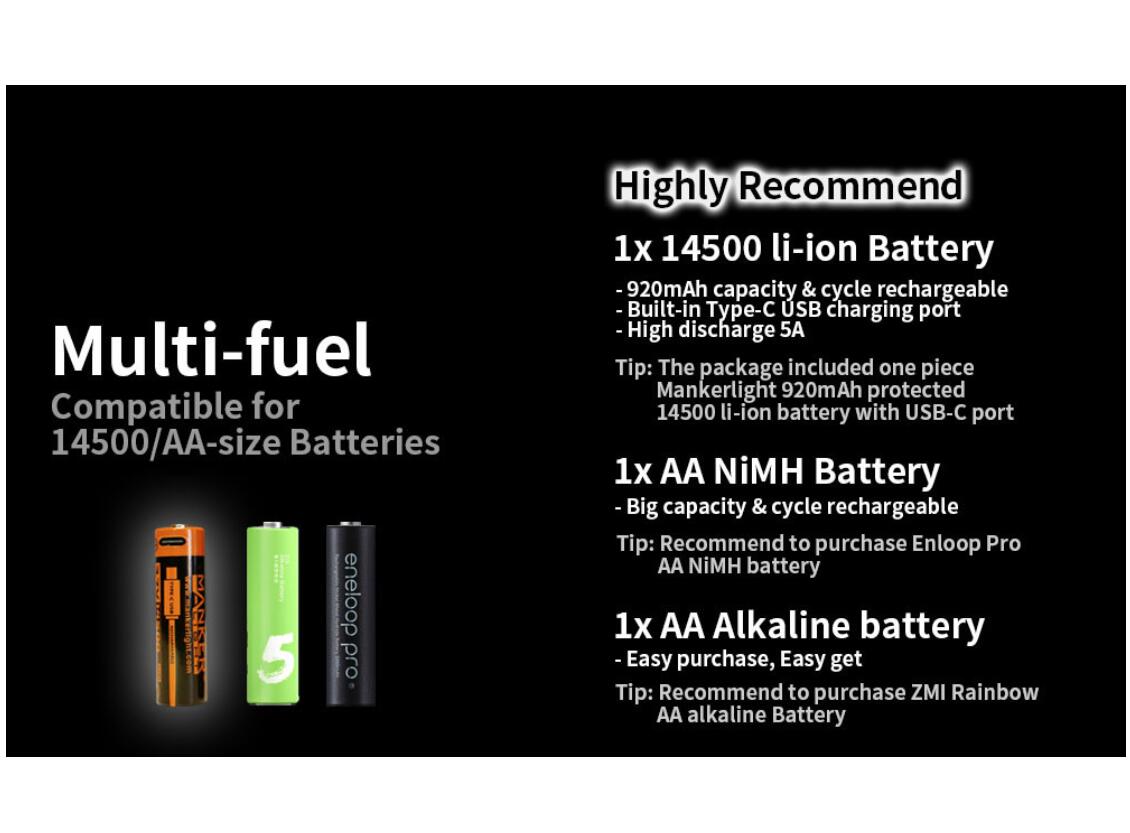

• Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
• Max Beam Distance: 148 meters (485.56 feet)
• Working Voltage: 0.9 V - 4.2 V

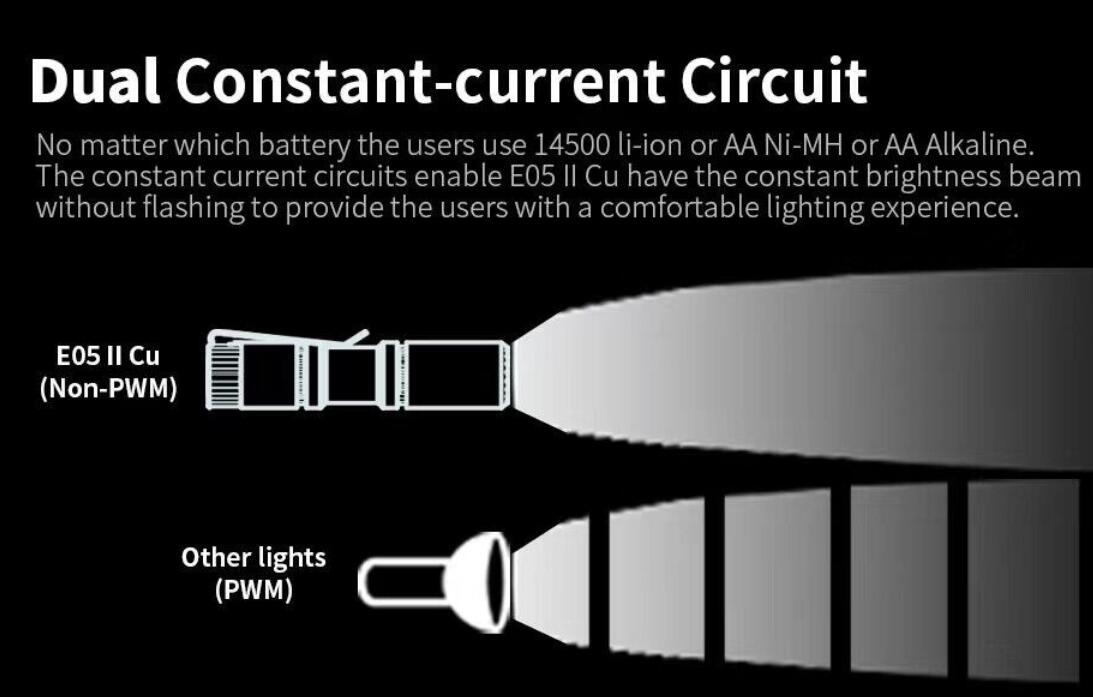

• Driver: High efficiency constant current circuit (both 14500 and AA)
• Body Material: Titanium with colorful Micro-Arc Oxidation (MAO) finish
• Clip Type: Deep carry clip
• Clip Material: 304 stainless steel with PVD black coated
• Button Material: Titanium with colorful Micro-Arc Oxidation (MAO) finish
• Contact Spring Retainer Material: phosphore bronze / gold plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass
• Optic: Orange peel aluminum reflector with vacuum plated
• Switch Type: Forward-click button (mechanical switch)
• Tritium: 1 slots in button cap. (fit for 6*1.5 mm)
• Size: 91.35mm (length) x ø17mm (min body dia.) x ø20mm (tail dia.) / 3.60" x 0.67" x 0.79"
• Weight: 79.3 g / 2.79 oz (included 14500 battery)
• Impact Resistance: 1.5 meters
• Waterproof: IP68 rated, tested 2 meter underwater for 60 minutes

Technical Data of 6500K Cool White

Powered by Mankerlight 14500 USB-C li-ion battery:
Low: 8 lumens, 50 hours
Medium: 300 lumens ~ 8 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
High: 1,300 lumens ~ 300 lumens ~ 8 lumens, 2 minutes + 1 hours +4 hours
Strobe: 1,300 lumens 20Hz
Beam intensity: 5,476 cd
Beam distance: 148 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2meters underwater for 60 minutes

Powered by AA Ni-MH Battery:
Low: 1.5 lumens, 27 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes

Powered by AA Alkaline Battery:
Low: 1.5 lumens, 55 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes

Operating Instructions
ON/OFF: Fully press the switch.
Momentary ON: Half-press from OFF until released.
Output change①: Continously half-press the switch (interval more than 0.5 second) to change different outputs ( Low - Med. - High), full press to lockout the selected output.
Output change②: From OFF status, fully press the switch to turn on Low output, and then fully press to turn OFF; fully press again to turn on Med. output, and then fully press to turn OFF; fully press again to turn on High output, and then fully press to turn OFF; If keep fully press again, turn back to low output.
Memory function: When OFF the light for 2 seconds, full press to output last used (except Strobe)
Strobe: Quickly double half-press the switch from OFF.

Note: When battery voltage is low, the light will step-down directly to low output, sometime you turn off the light and then turn on again, it can be lighted up but will also step-down to low output soon. When battery voltage is extremely low, the light will shut OFF automatically.
