High Power 28W UV 365nm 395nm 405nm 420nm Light 28pcs-LEDs Integrated PCB DIY Lamp for Shadowless Repair Glue Resin Ink Paint UV Green Oil
Regular price
$39.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

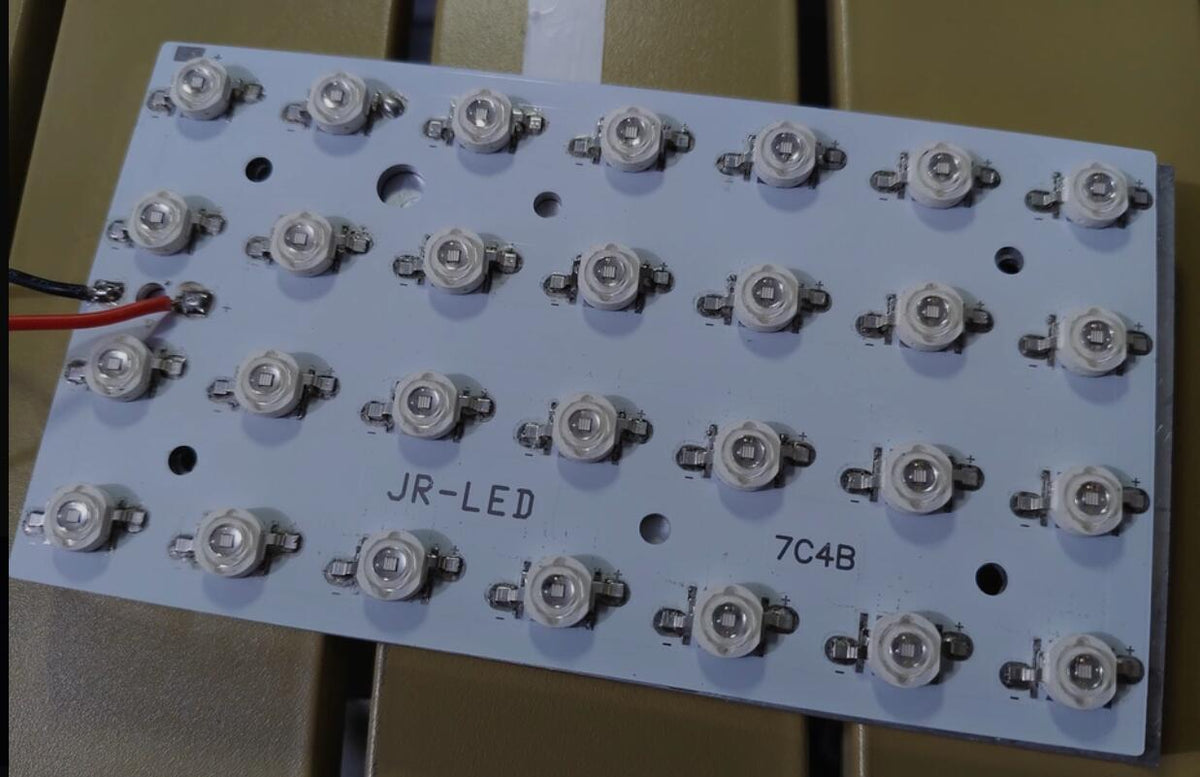

TIPS: The two power connection wires on the PCB: red wire ("+") and black wire ("-"), have been soldered for you.You are responsible for completing other tasks
NOTE:
1. The PCB needs the heat sink and LED driver through the options above,or Easy to burn leds out
2. Before turning on the led bulb, it is recommended to first connect the driver and then place it on top of the heat sink. Apply thermal conductive silicone under the PCB copper plate and stick it on top of the heat sink
Specification：
Power: Total 28W
LED QTY: 28pcs 1W
LED Brand: GuangHong

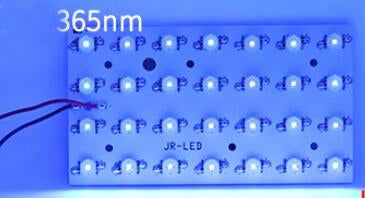

LED Color: UV 365nm,395nm,405nm,410nm,420nm
PCB Type: Integrated Light PCB(need cooling)

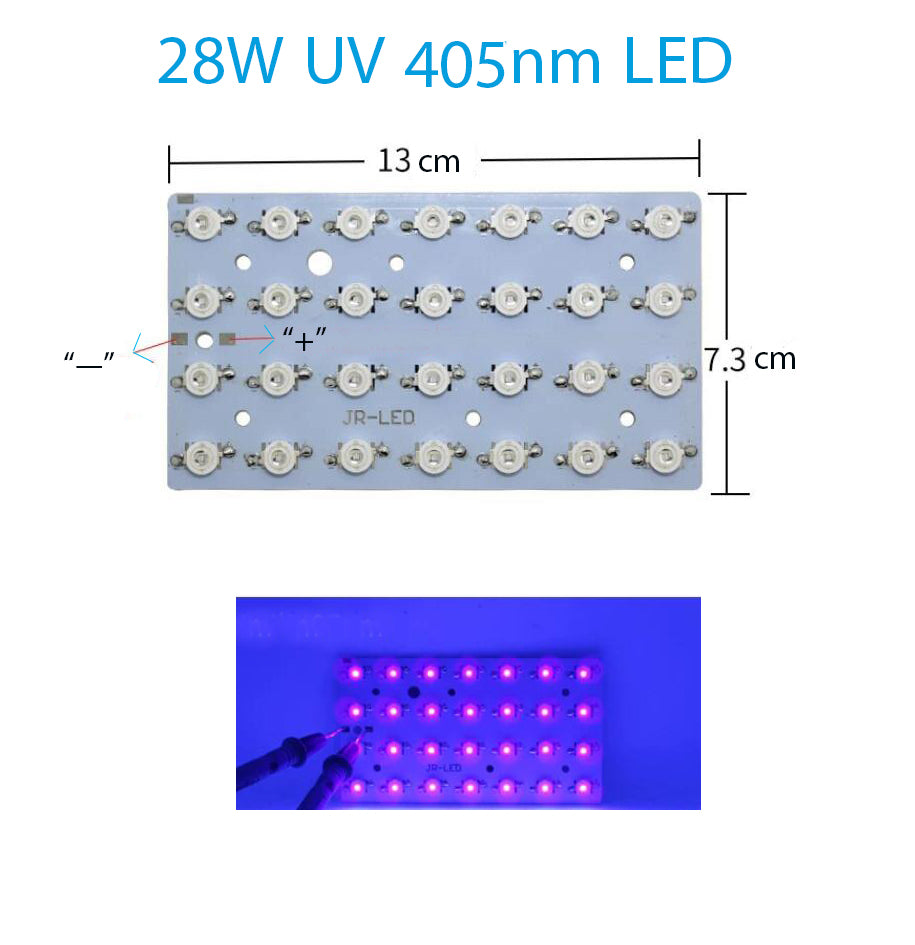

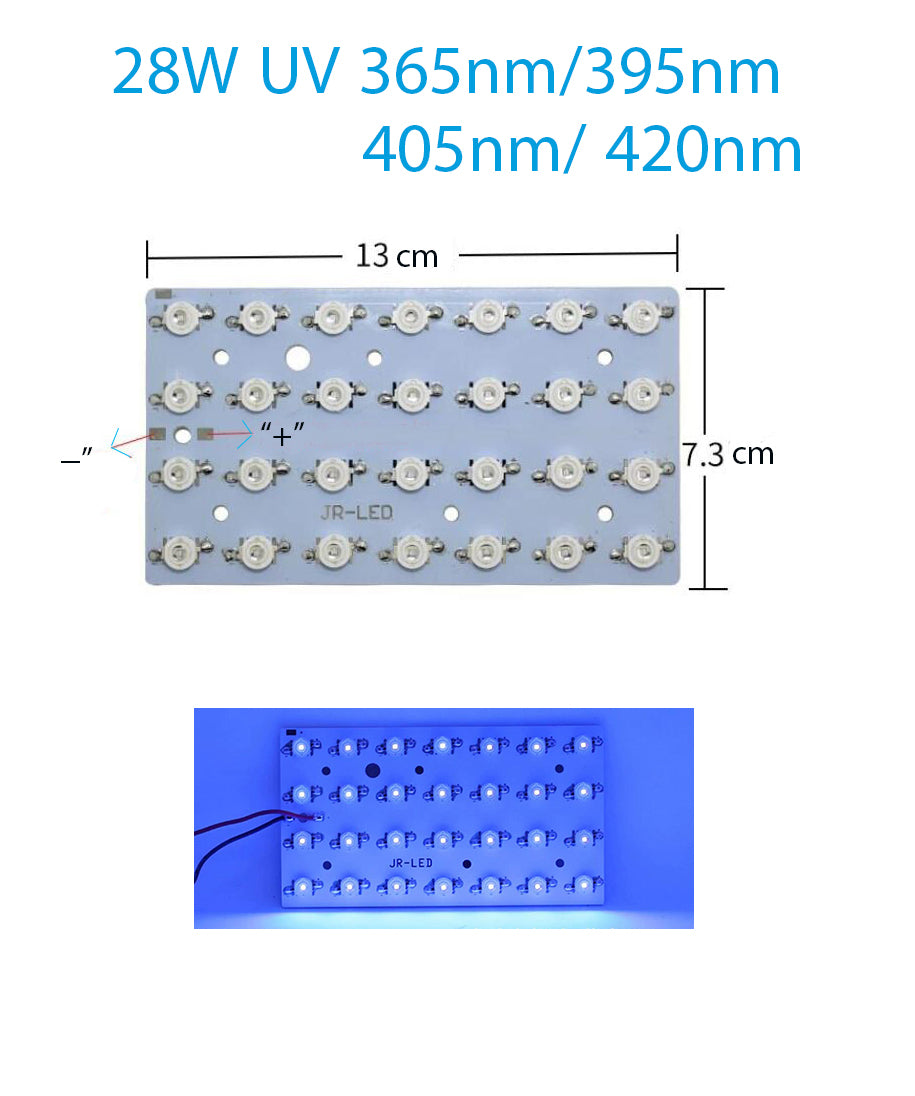

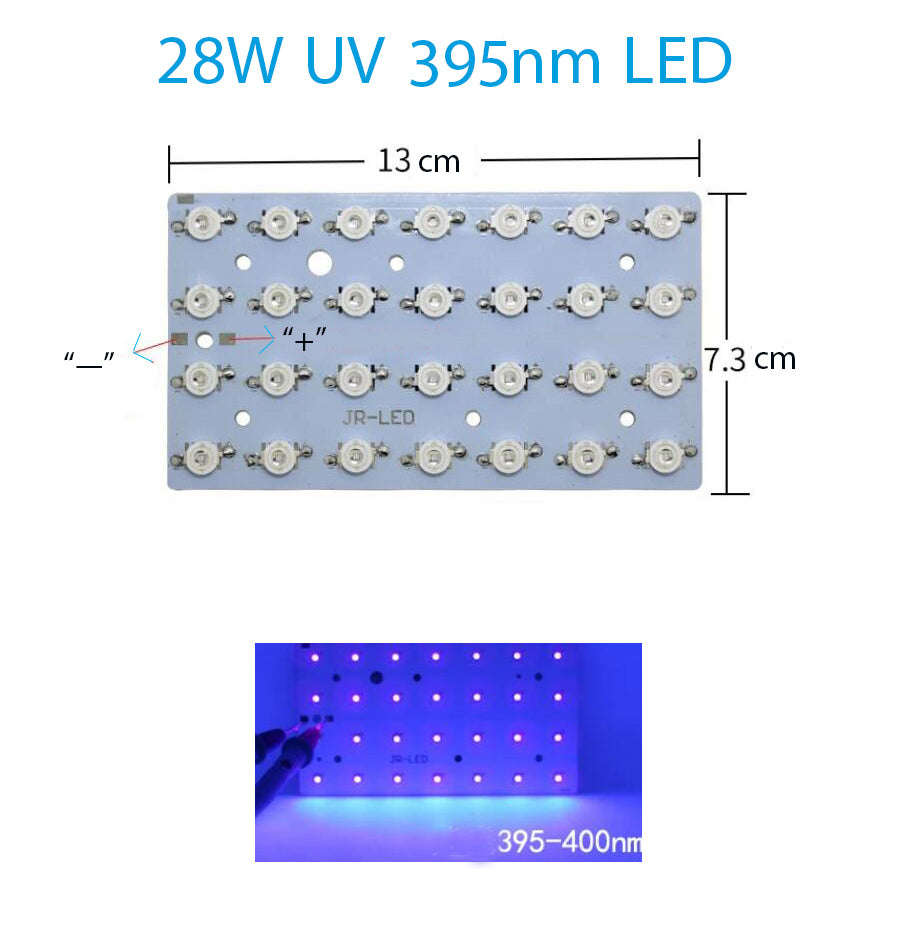

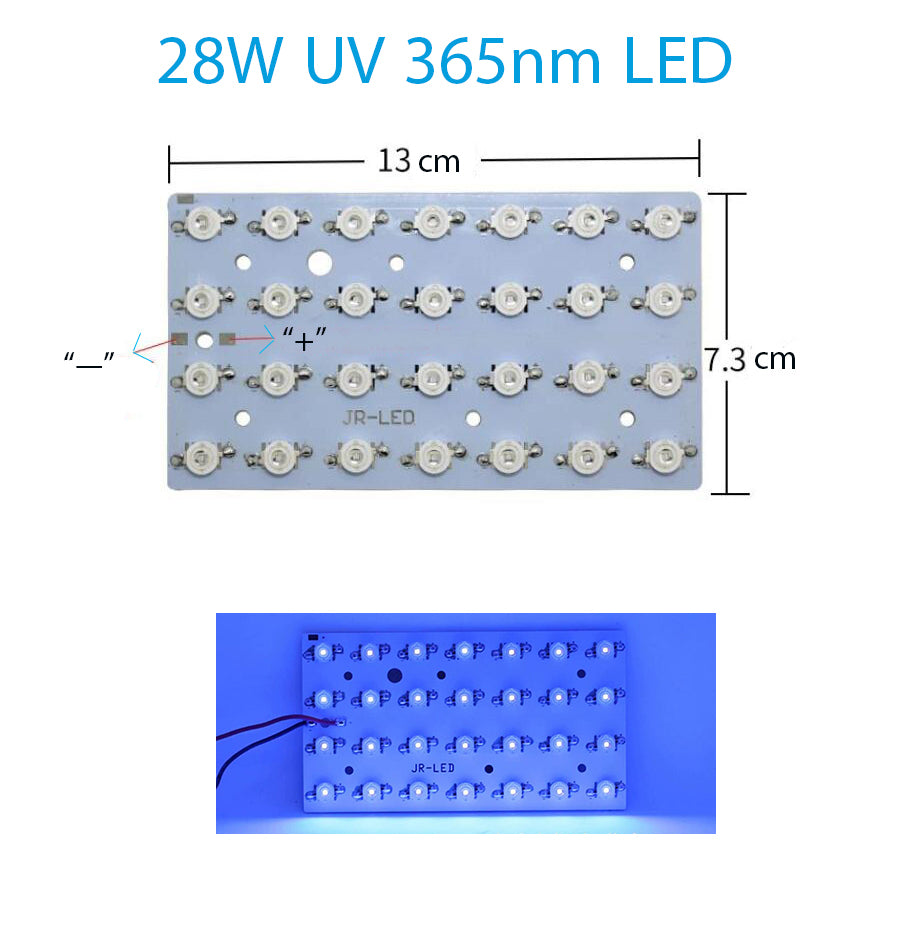

PCB Size: 13x7.3x0.73 cm
PCB material: Aluminum alloy
Voltage: DC 21-24V
Current : 900-2000mA
"Scope of application" UV adhesive shadowless adhesive, solder resist green oil, UV ink, print exposure, UV varnish (special for LED), UV three-proof paint, cable reinforcement, solder joint protection, seamless hook, blue sun transfer decoration, LCD sealing, gem mineral irradiation and so on.
1. The UV-LED surface light source of this product adopts high-strength imported lamp beads with high energy and strong penetration, which are mainly used for curing of UV glue, shadowless glue, UV dripping glue, photosensitive resin glue and UV green oil. 2. Different wavelengths such as 365nm, 385nm, 395nm and 405nm can be selected; 3. Advantages of the product: the UV LED surface light source does not need preheating, and can be turned on and turned on immediately, with high-purity irradiation, without thermal radiation and deep ultraviolet light; Using cable output, the service life is long, which reduces the cost of equipment consumables for you. Compared with mercury lamp, it has low energy consumption and contains no mercury substance. It is a new type of UV curing equipment with energy saving and environmental protection, which makes the UV curing of your products faster.
