High Power 18W 30-LEDs UVC 254nm 265nm 275nm 290nm 310nm 340nm UV AC 220V DIY Module Kit Medical Sterilization Air Purification Lamp
Regular price
$199.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Application:Air Purification/Water Disinfection/Surface Sterilization/Fluorescent spectroscopy/Chemical and Biological analysis etc.
NOTE:
1. It is a kit,only Support AC 220V,DO NOT Support AC 110V
2. In website,have more powerful kit,the same diy kit,you can search them
Features:
PCB Size(mm): 55x 40x 1.6mm
UV Power: 18W
LED QTY: 30PCS
PCB Material : Copper
UV Band Type: UV 254nm,260nm,275nm,290nm,310,340nm
Working voltage: AC 220V
Plug Type: US Plug
Plug Type: US Plug

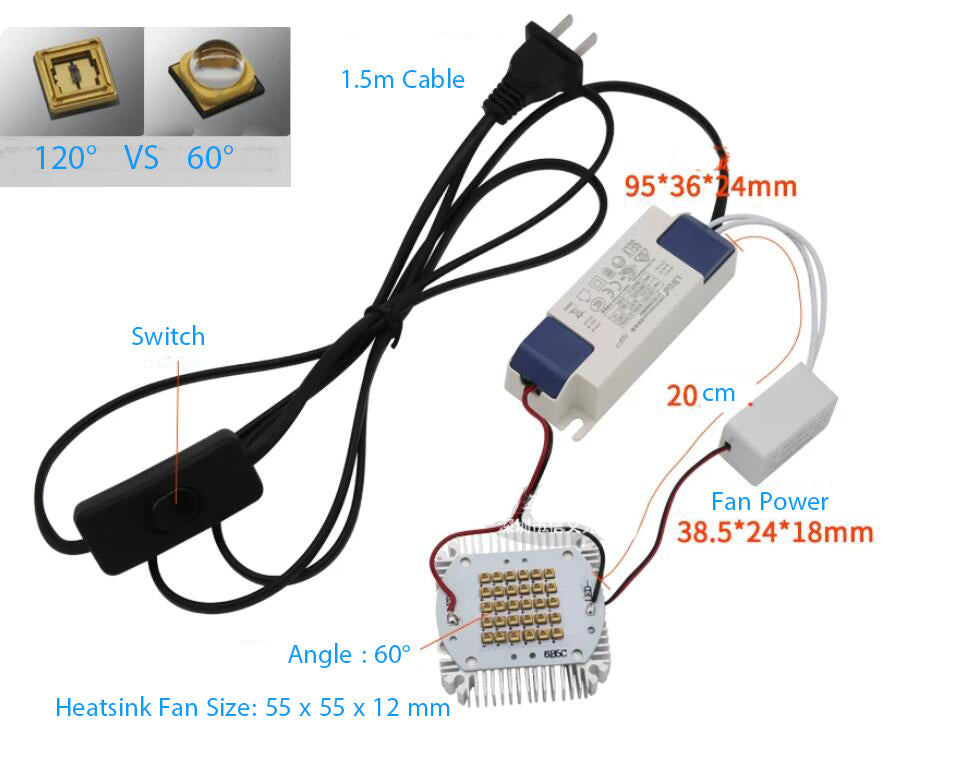

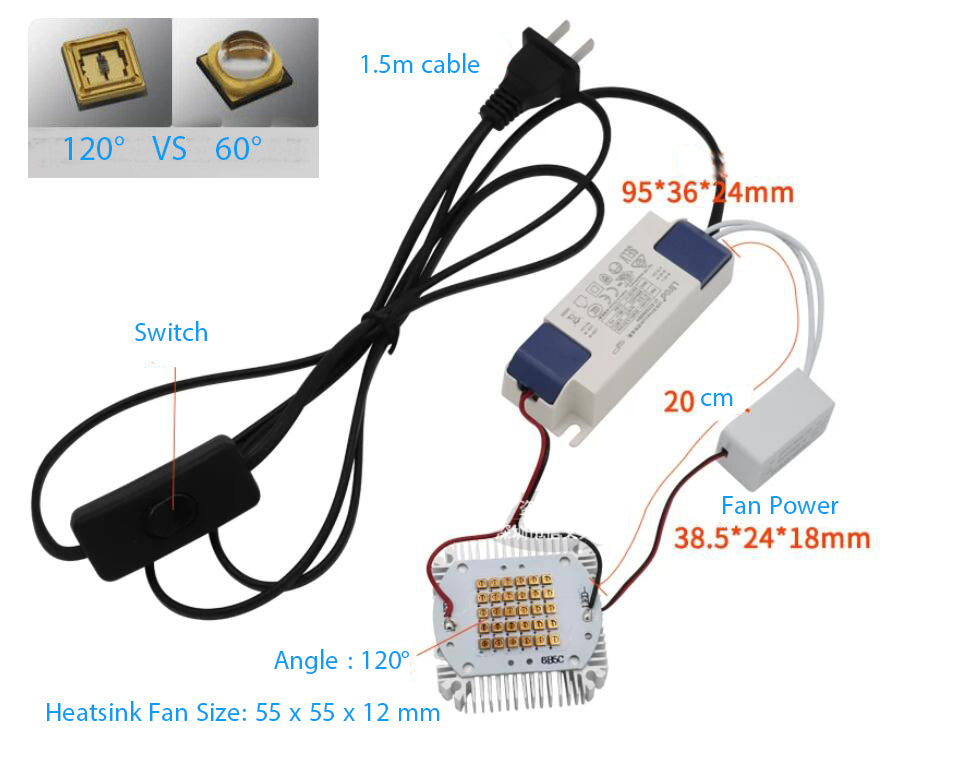

Lighting Angle：60 Degree(Spot)/120 Degree,Optional
Used for:Medical Sterilization and Disinfection etc
Luminous Flux:200-300mW
Power VS: 340nm >310nm>290nm>275nm>260nm>254nm
Fan Size : 55x55x12mm
Fan Material : Aluminum alloy
Weight : 35.7g
UVA [band range 320-400nm]:
It mainly exists in the form of LED lamp beads, and is widely used for UV curing of UV glue, film, ink, varnish, paint and other coatings. Commonly used bands are concentrated at 365nm, 395nm and 405nm.
UVB [band range 275-320nm]:
It is mostly irradiated by UV tubes, mainly used to promote the growth of plants, with a peak value of about 295nm.
UVC [band range 200-275nm]:
It is mostly irradiated by UV tubes, mainly used in sterilization and disinfection industry, with an ideal peak value of about 250nm.
