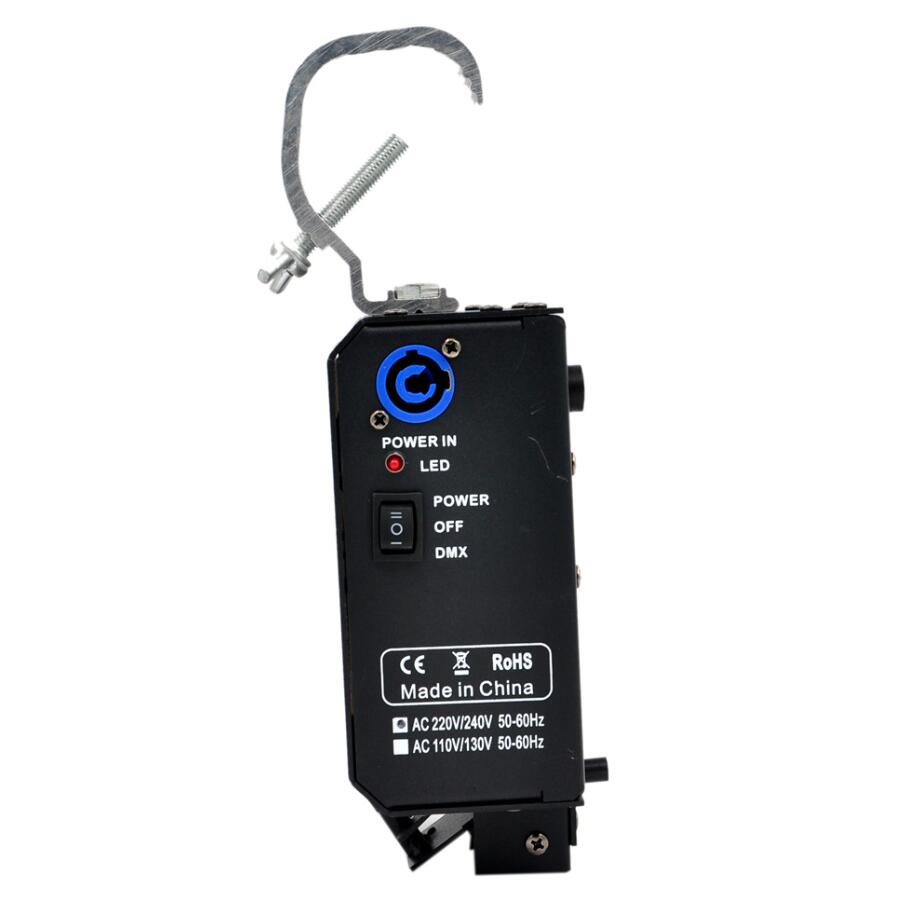

DMX512 Curtain Drop Machine with Hooks For Chiffon Wedding Backdrops Panels Hanging Curtains Party Backdrop Wedding Decoration Drape
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Specification:
Voltage: 110V/220V
Power: 100W

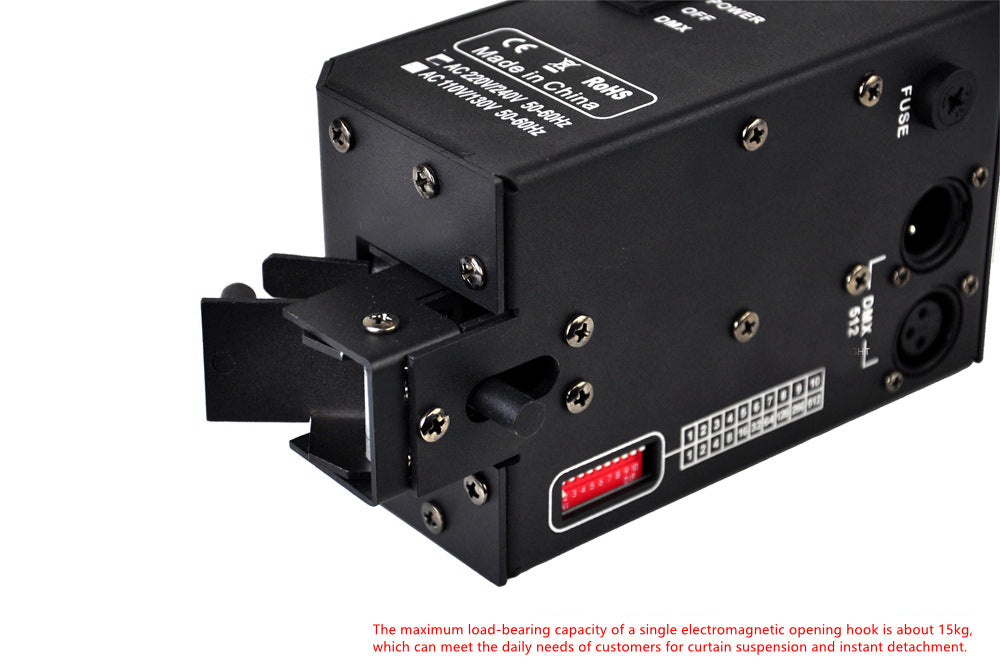

Load weight: 35kg/unit
Control way: power (manual way)/DMX512
DMX channels: 2

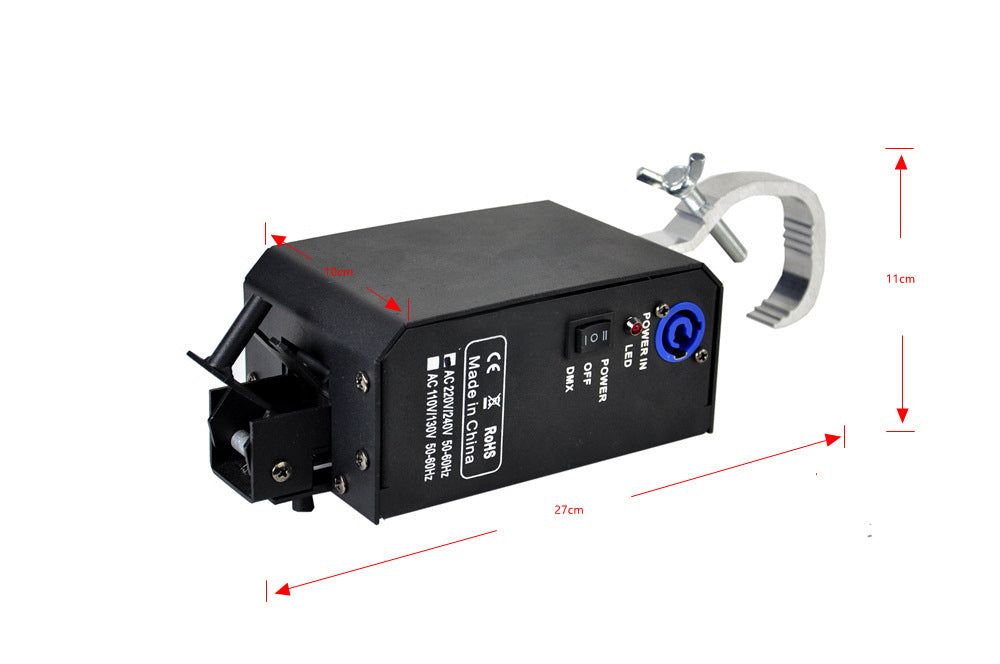

Machine weight: 2kg

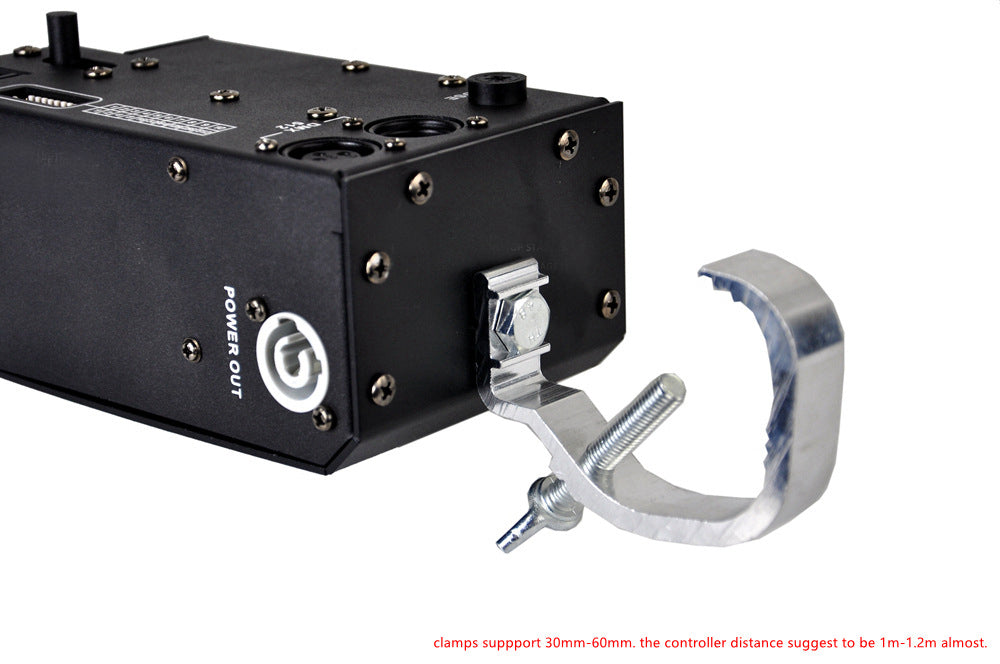

Controller distance: suggest 1m-1.2m between 2 machines.

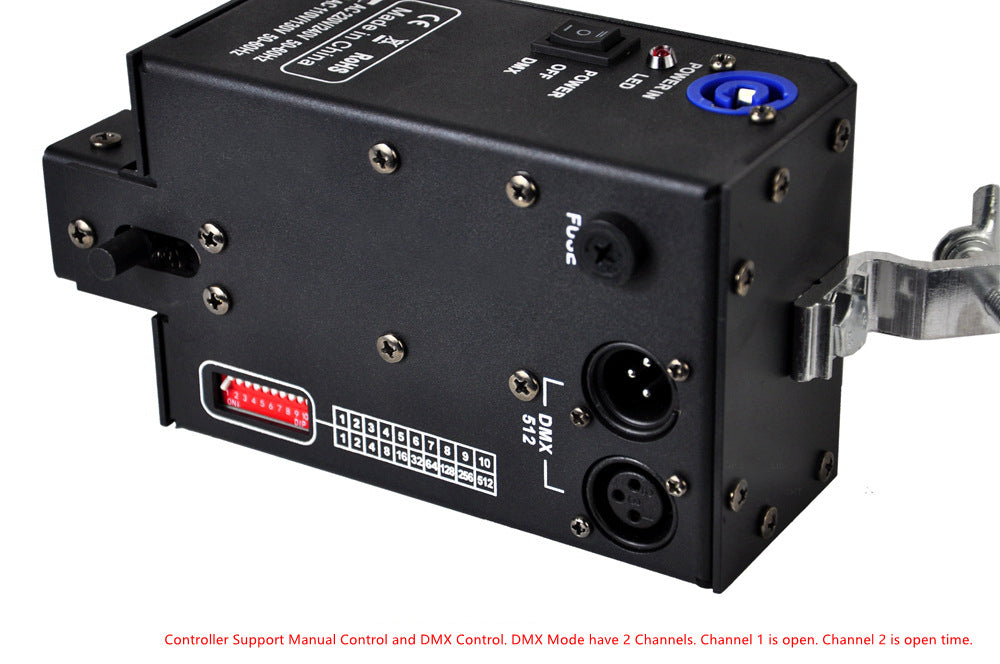

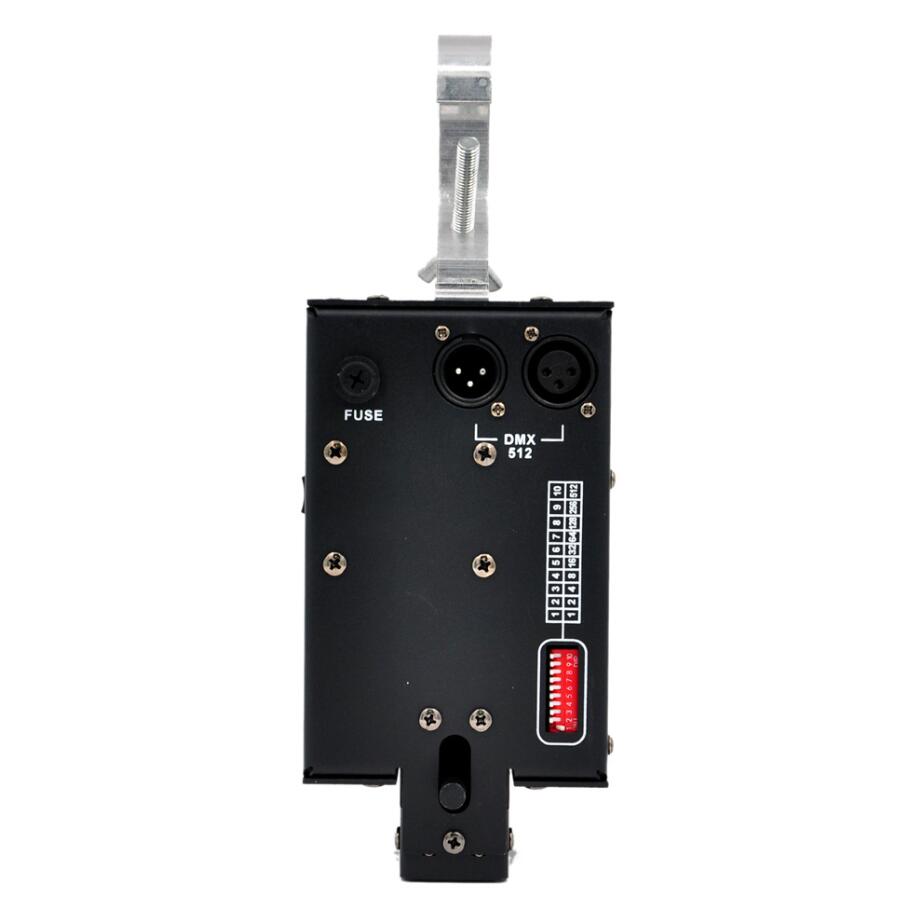

DMX channels information:
Channel 1= open (the machine clamp will open 1 second directly)
Channel 2= open time (maximum time is 3 seconds)
*we suggest customer push channels 2 from 0-255 firstly. Then push channel 1 again. If no open successfully. Then push channels 2 to 255 and push channel 1 again.

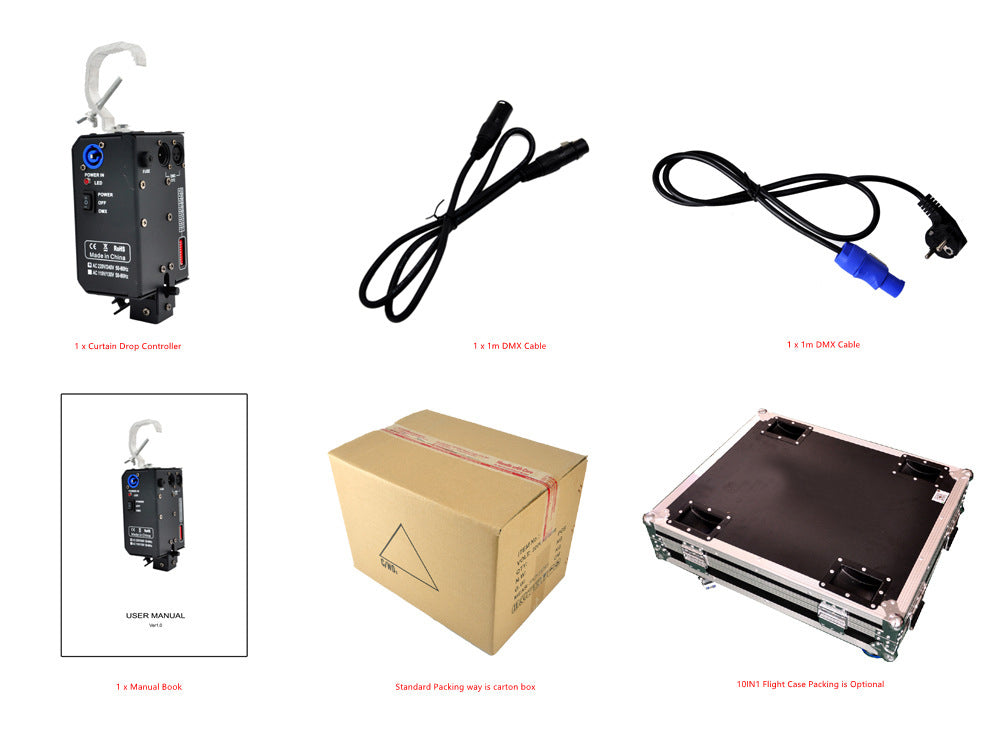

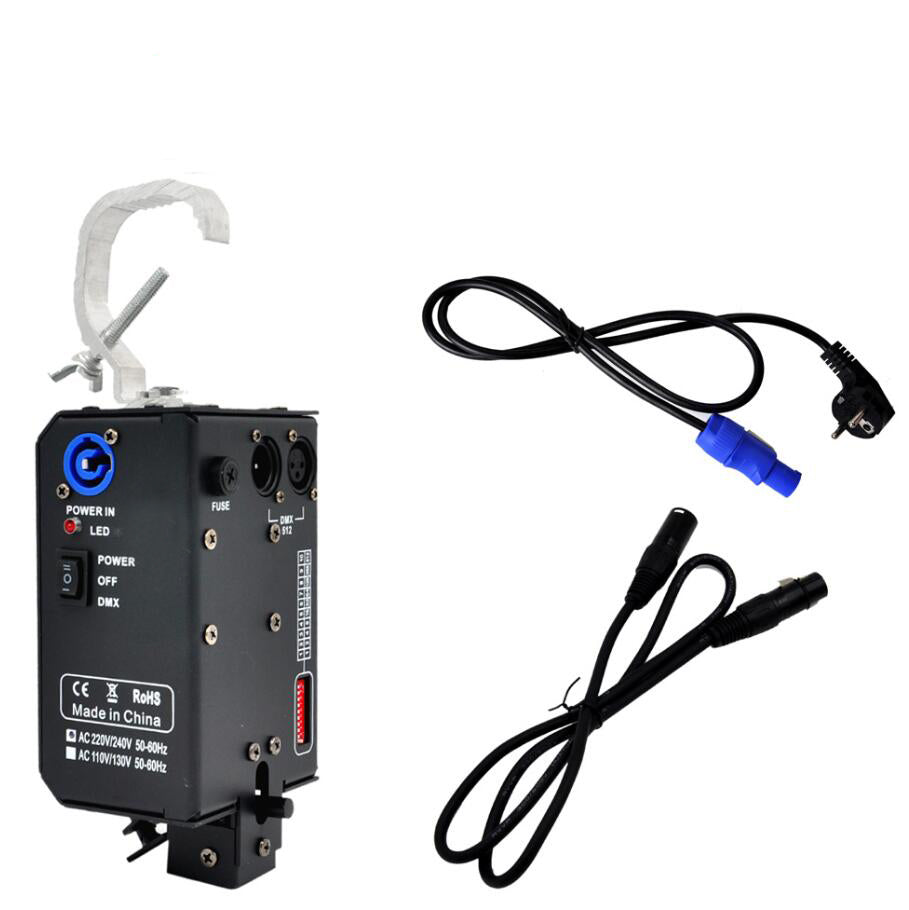

Packing list for each controller:
1 x curtain drop controller
1 x power cable
1 x DMX cable
1 x manual book

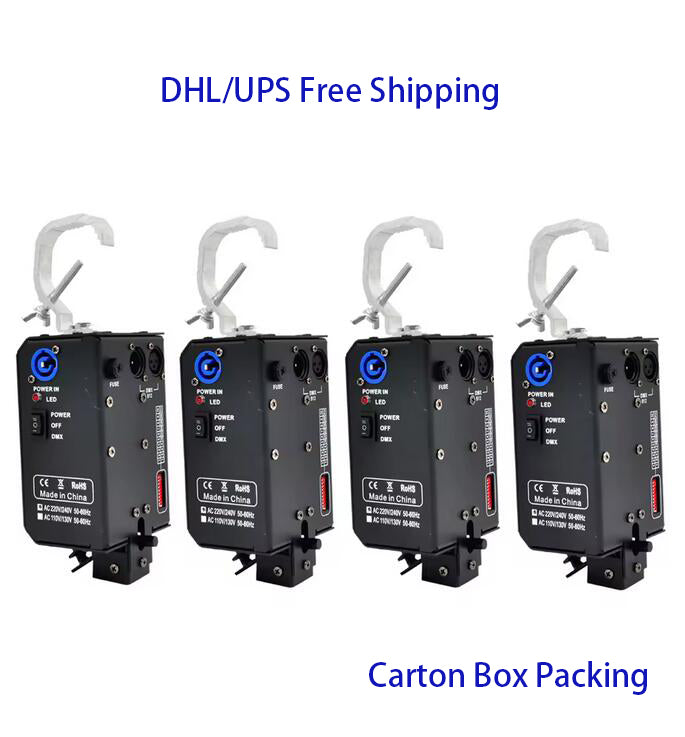

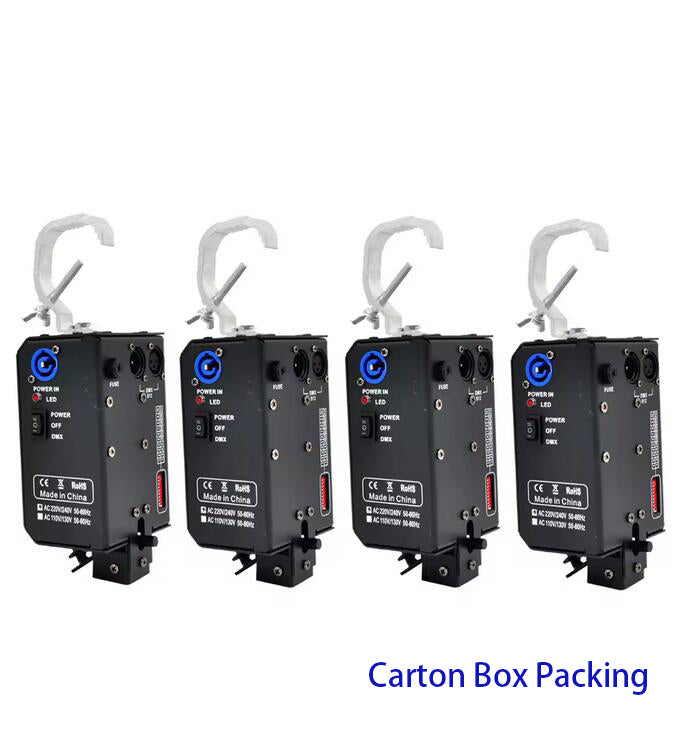

*standard packing way is carton box.
Please note:
1: the standard packing we will offer 1 x power cable A and 1 x DMX cable A for each unit. The power cable is 1.2m long and DMX cable is 1m long.

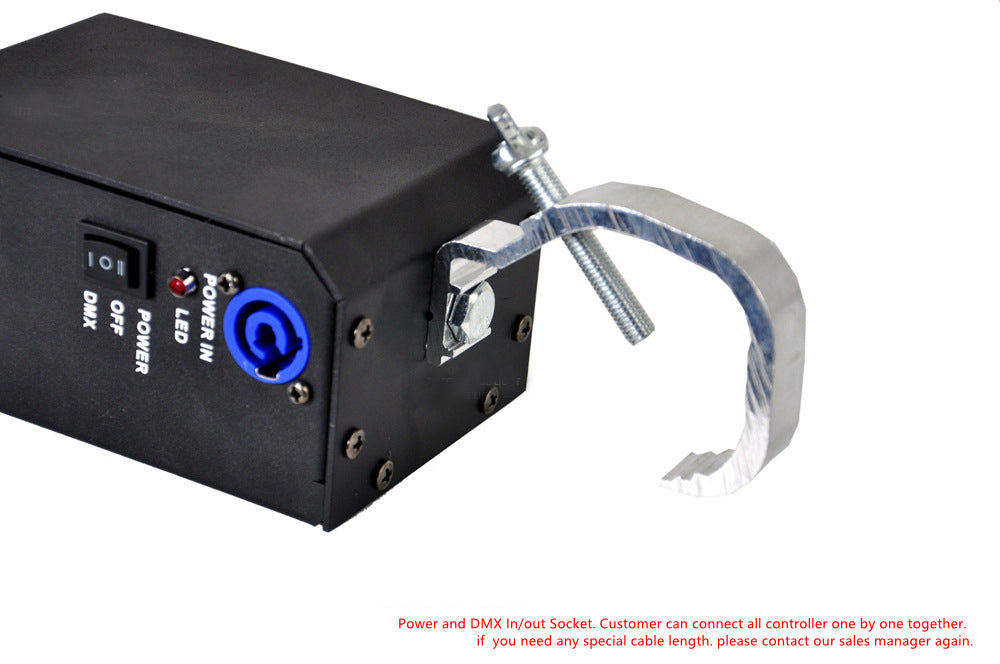

2: if you want to hang the curtain drop controller one by one together on the truss pipe and connect together. There are 2 control way. DMX control and power cable. DMX control need additional DMX controller. Power control we have red button power controller. If you need please contact us.
3: the curtain drop controller if you want to connect one by one together by power cable and DMX cable. If you need connect power cable and DMX cable. Please tell us the length and quantity you need. So we can quote you additional price (if you connect all together the standard power cable and dmx cable is useless)
