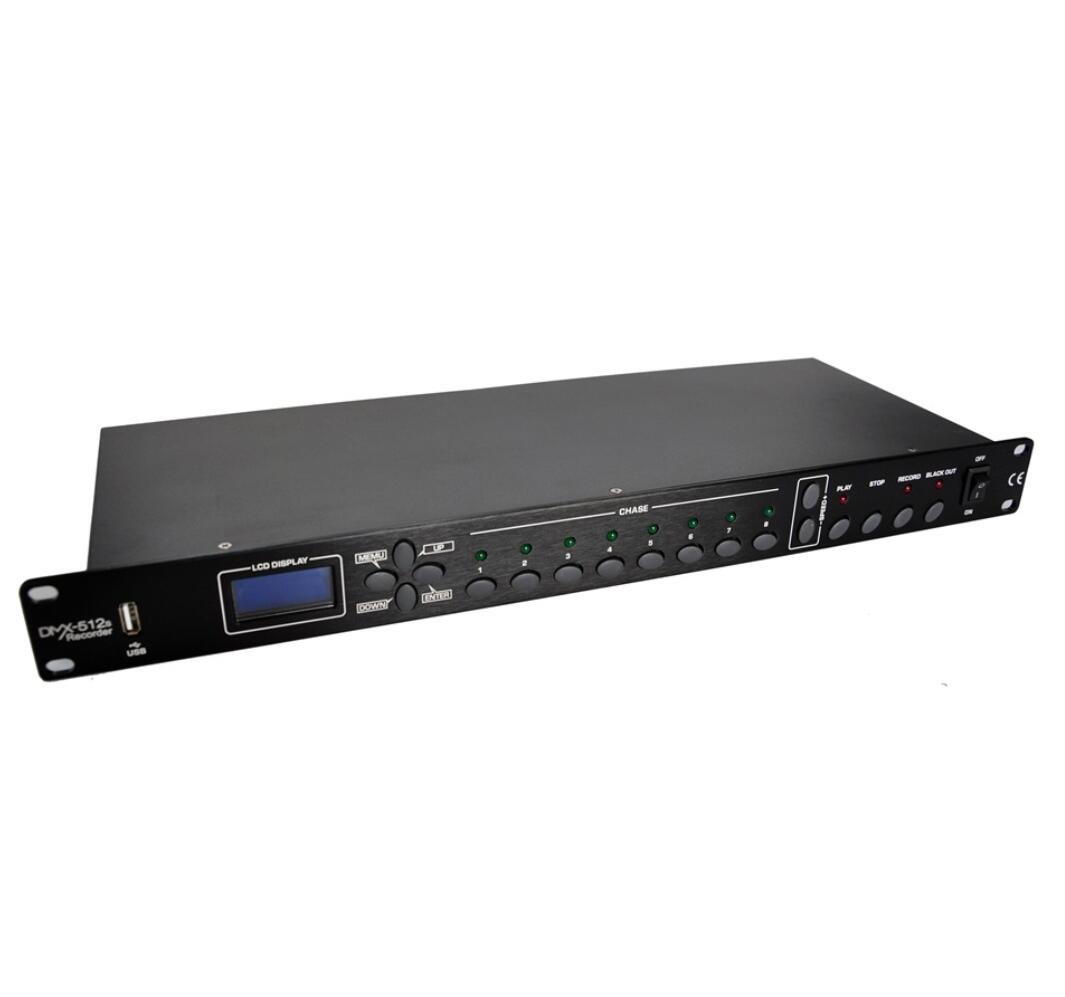

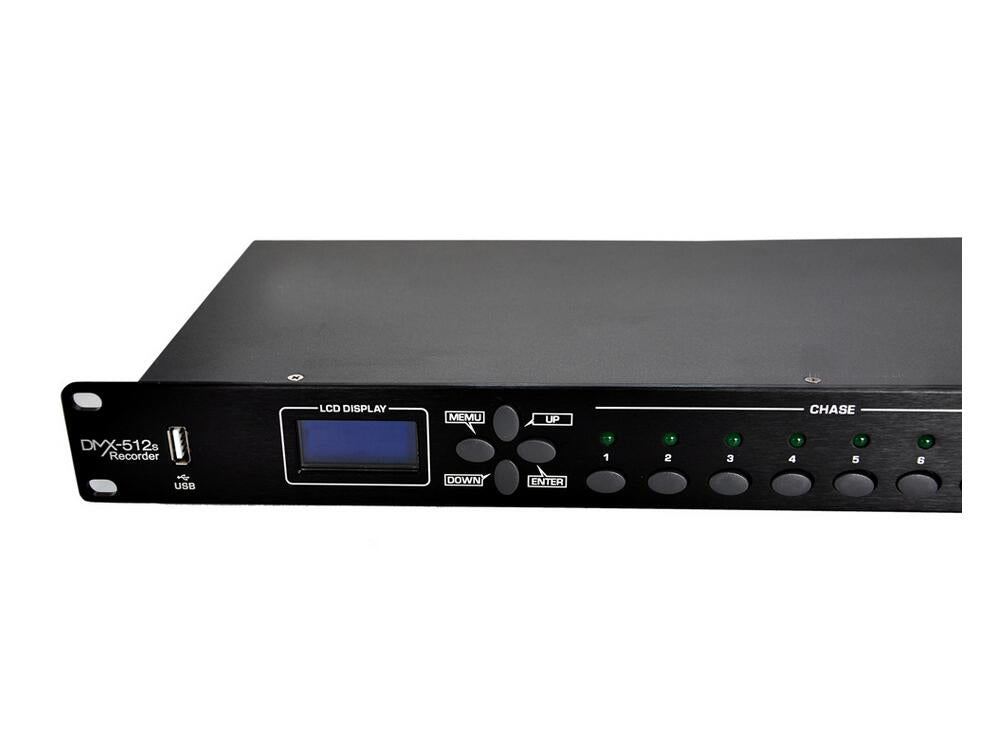

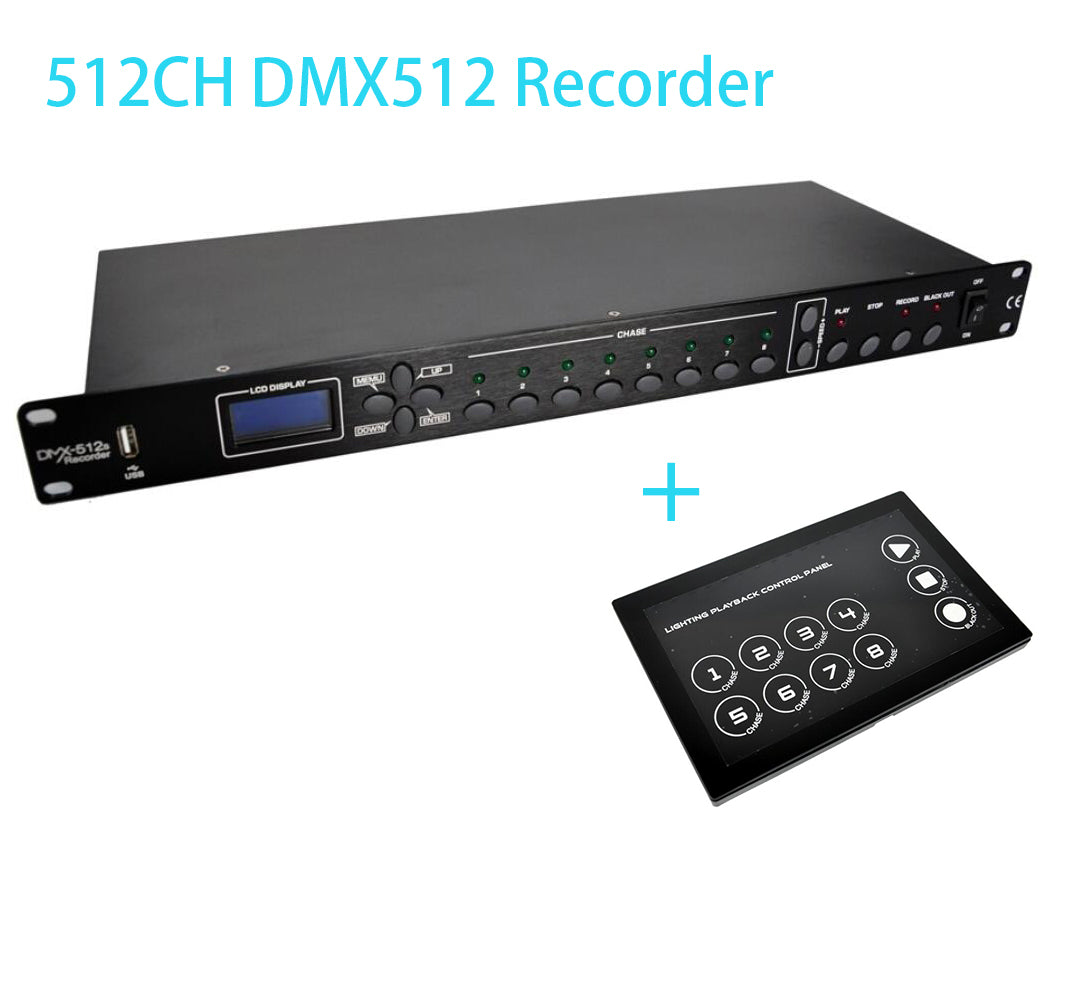

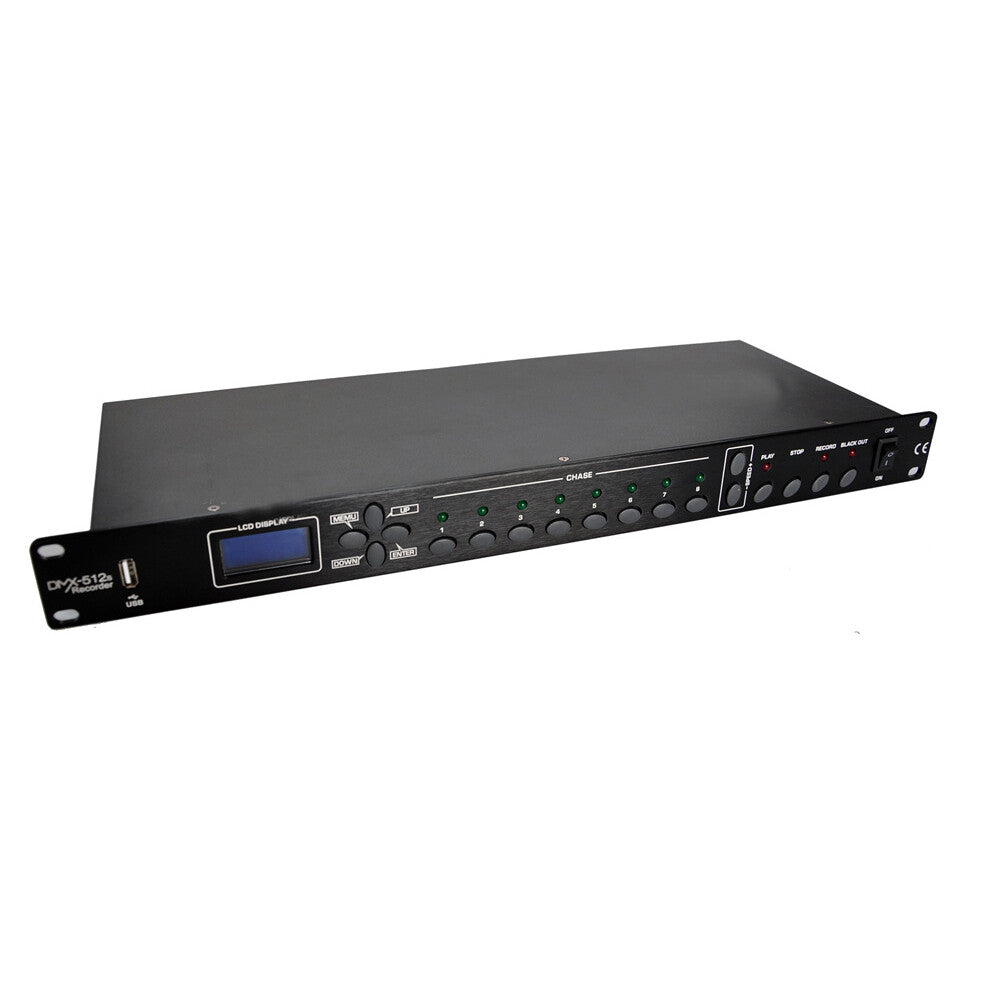

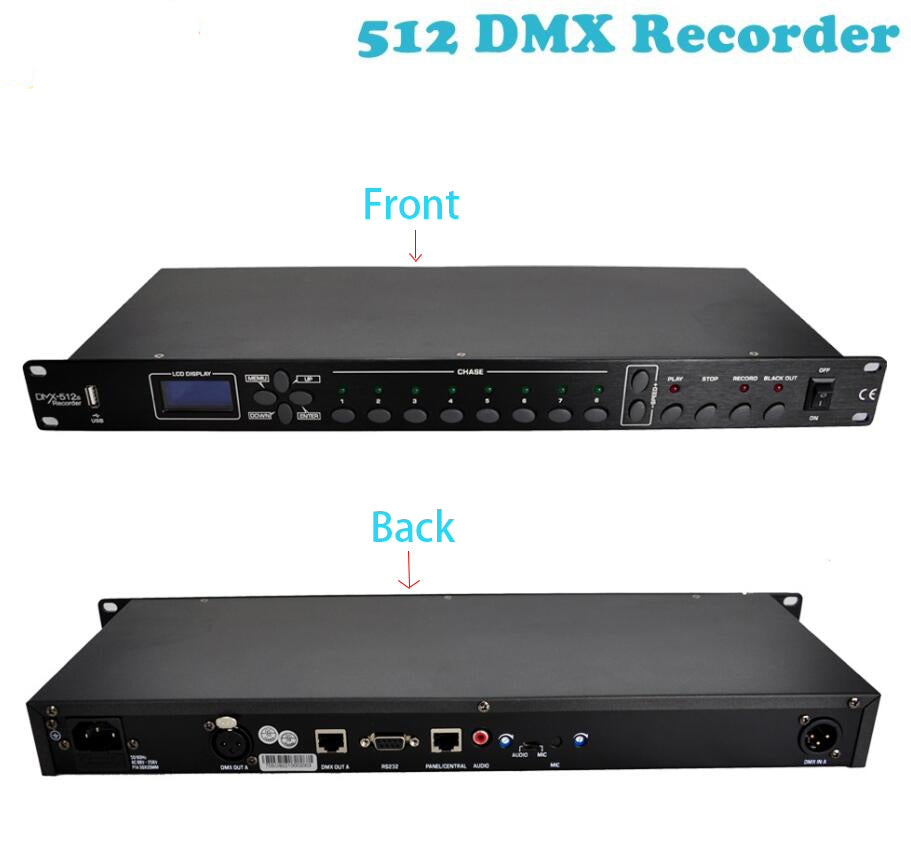

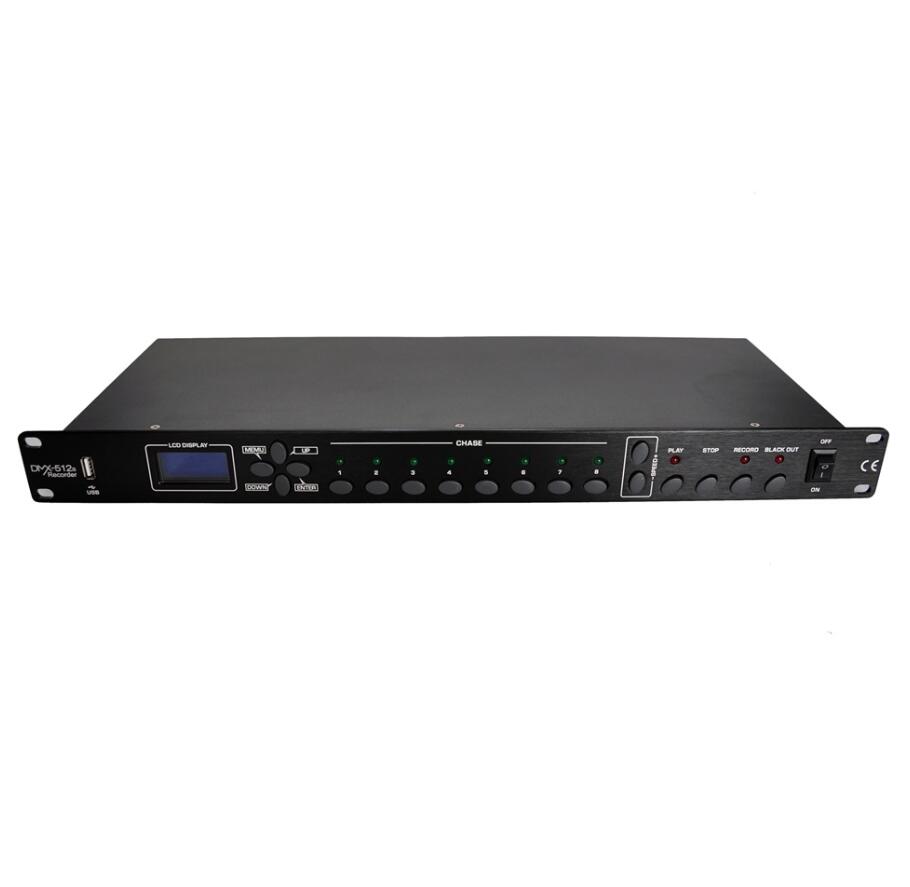

DMX512 Recorder With Powercon Audio RJ45 LCD Playback Control Panel For CLUB KTV

Product specification:

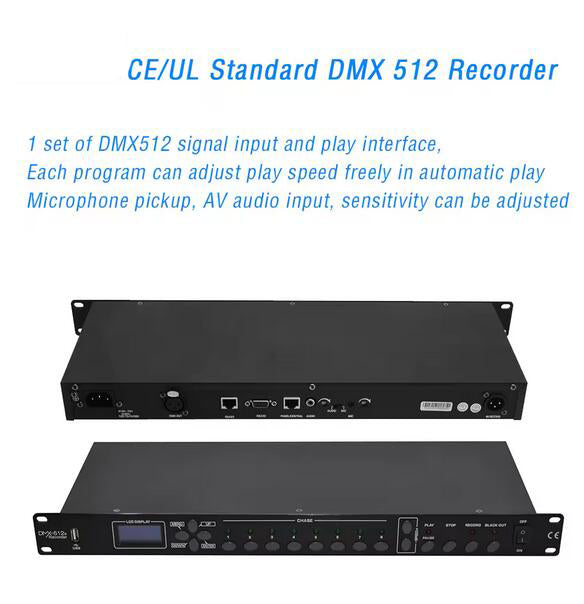

1 set of DMX512 signal input and play interface,control 512 channels

Play mode can be adjusted, free choice ofautomatic (Multi, Cycle, Single), Microphoneand Audio

Each program can adjust play speed freely inautomatic play mode

Built-in 512M storage, stored in 8 programs, each program can record for more than 5 minutes (depending on the channels of the console and the size of the content)

Two interface manipulation modes: system (all functions) and user (only play function)

Microphone pickup, AV audio input, sensitivity can be adjusted

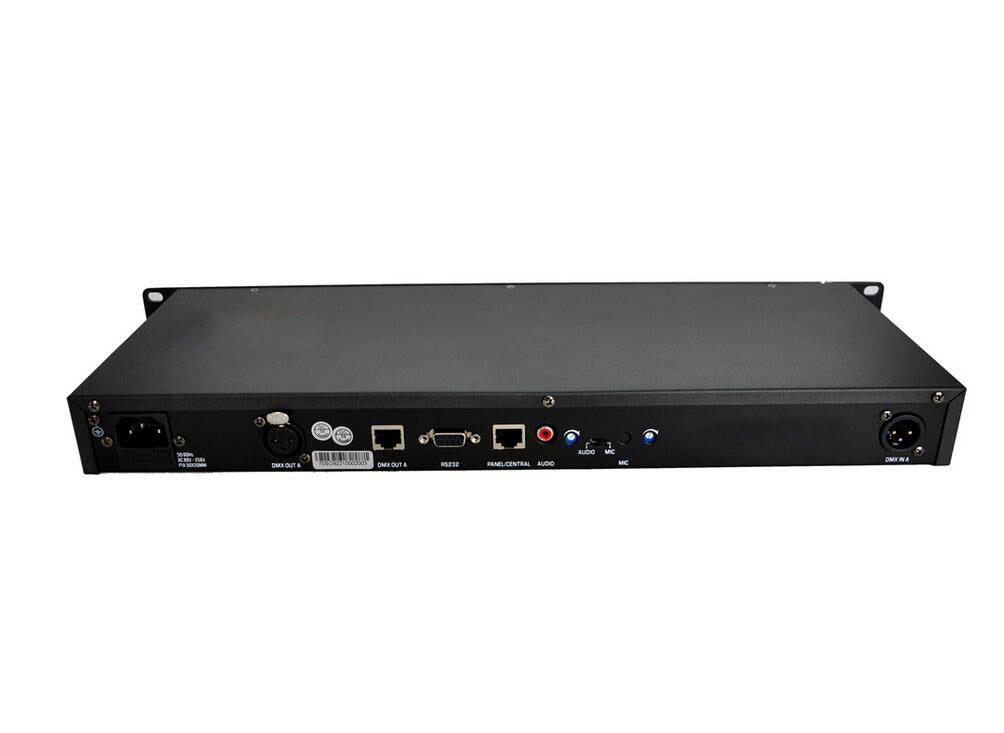

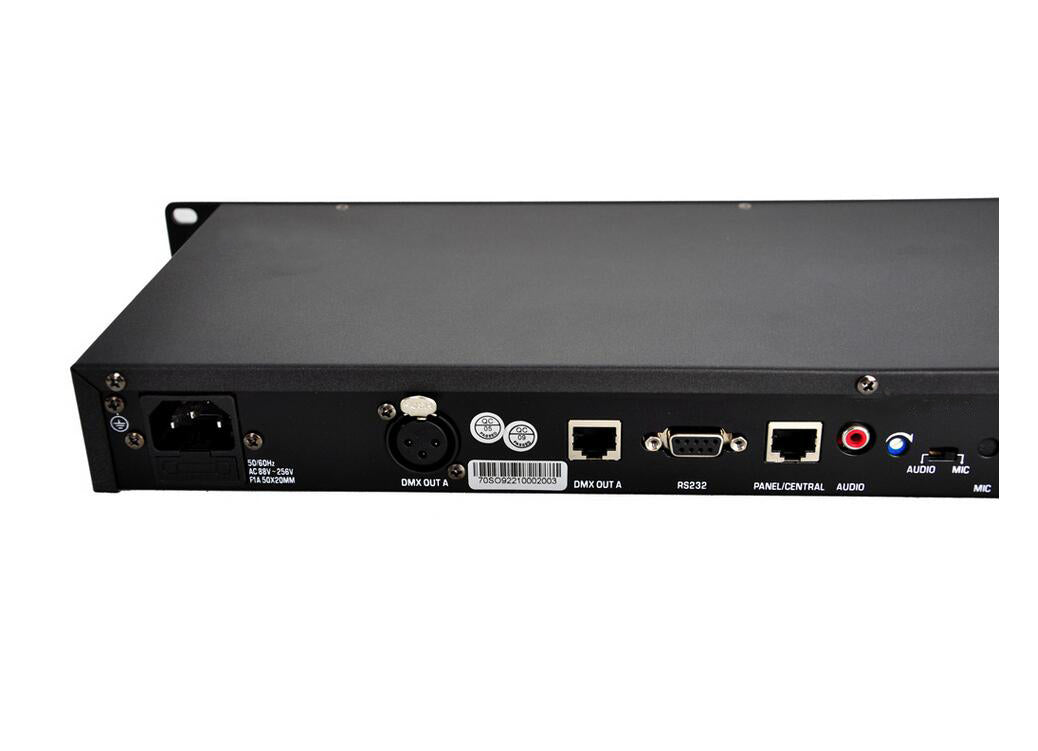

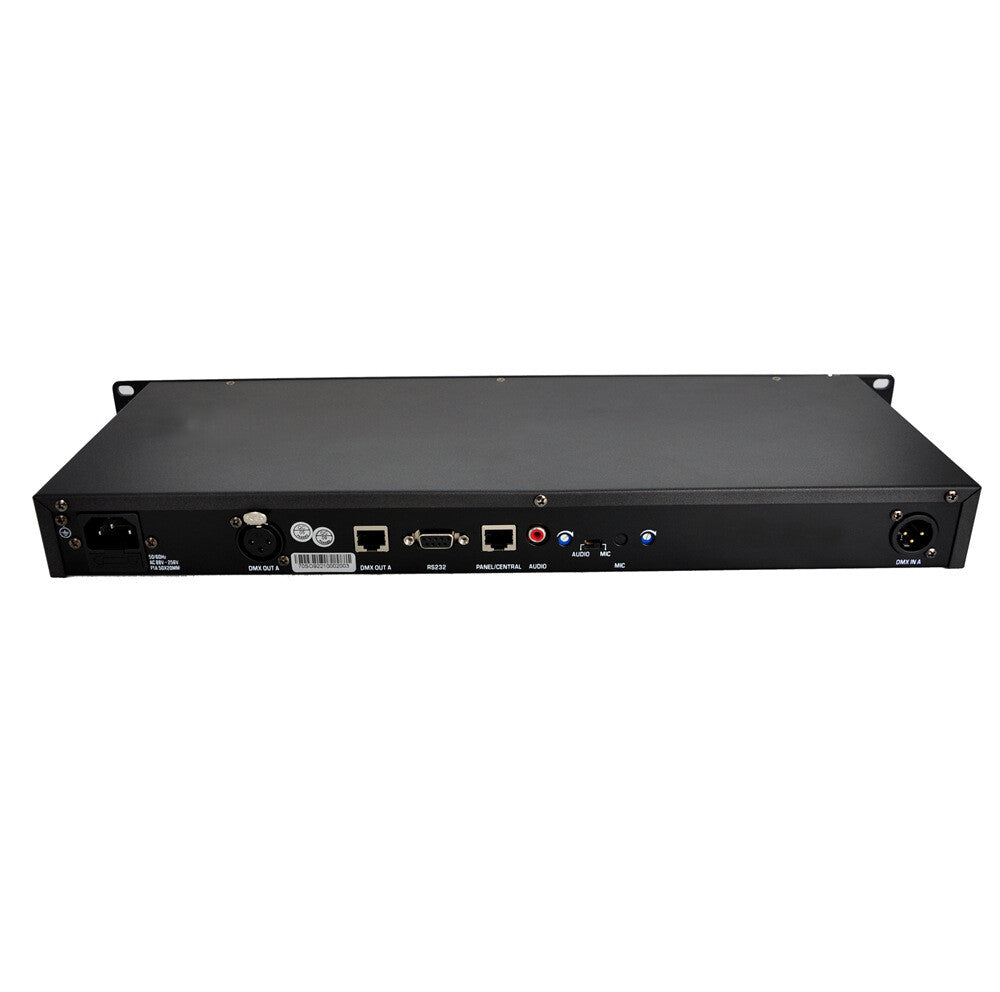

RJ45 or RS232 connect central control or touch panel

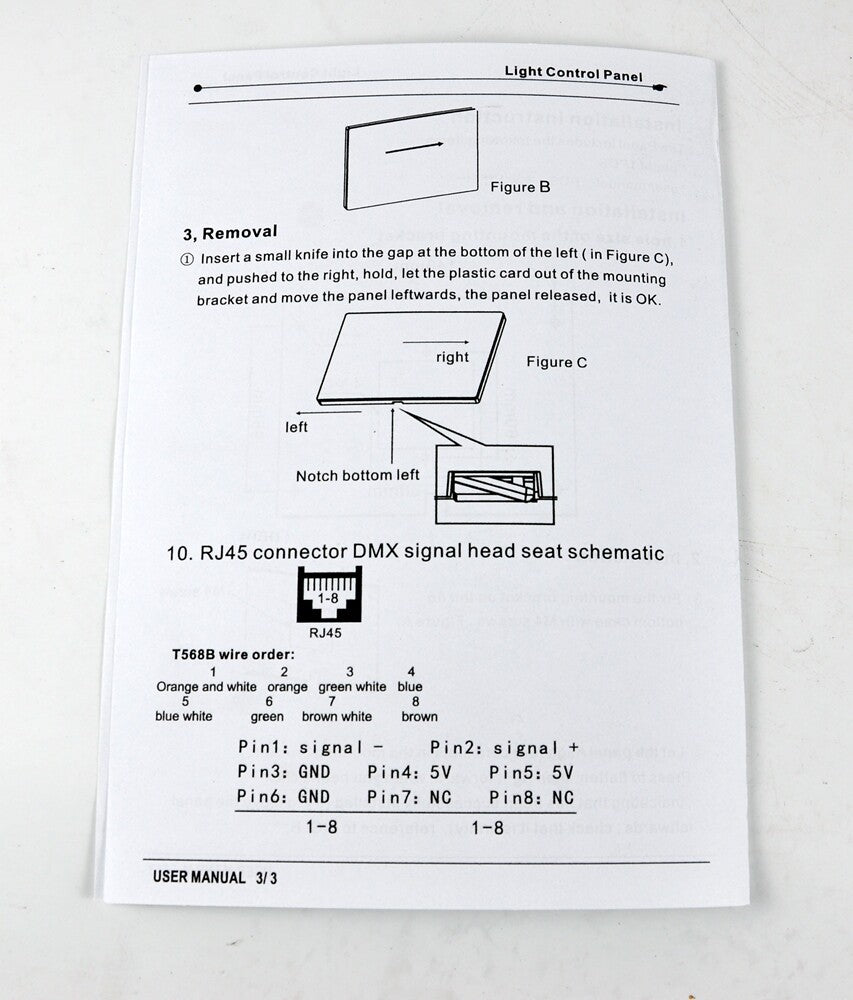

Support XLR pin 3 / RJ45 network port

USB disk backup and download

Input Voltage: AC88~256V 50/60Hz

Dimension: 482mm×173mm×44mm

Net Weight: 1.65kg

Up to CE standard, UL standard and GB7000.15-2000 standard

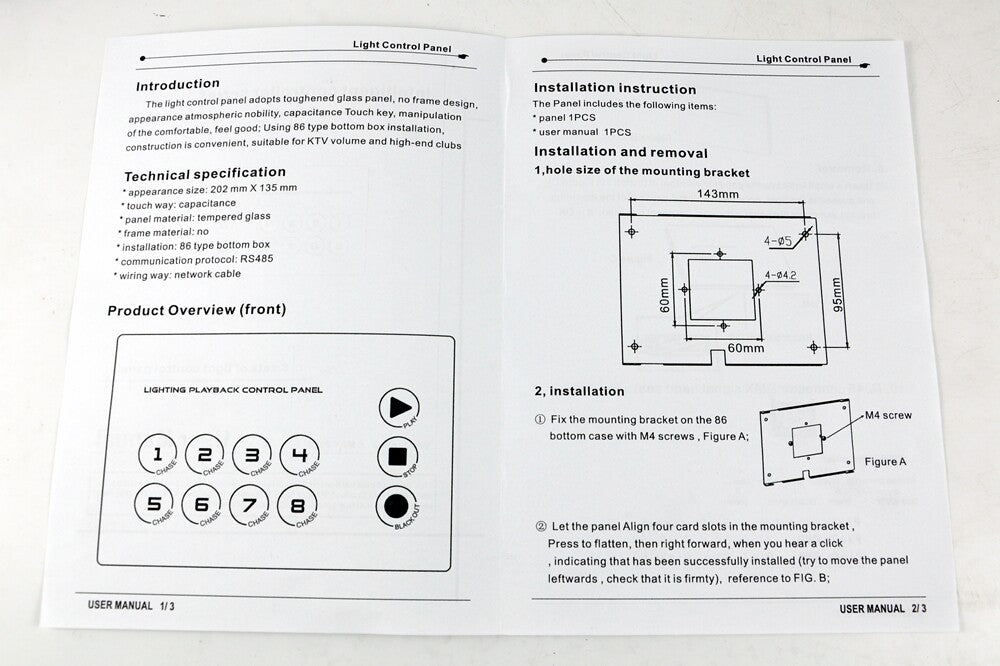

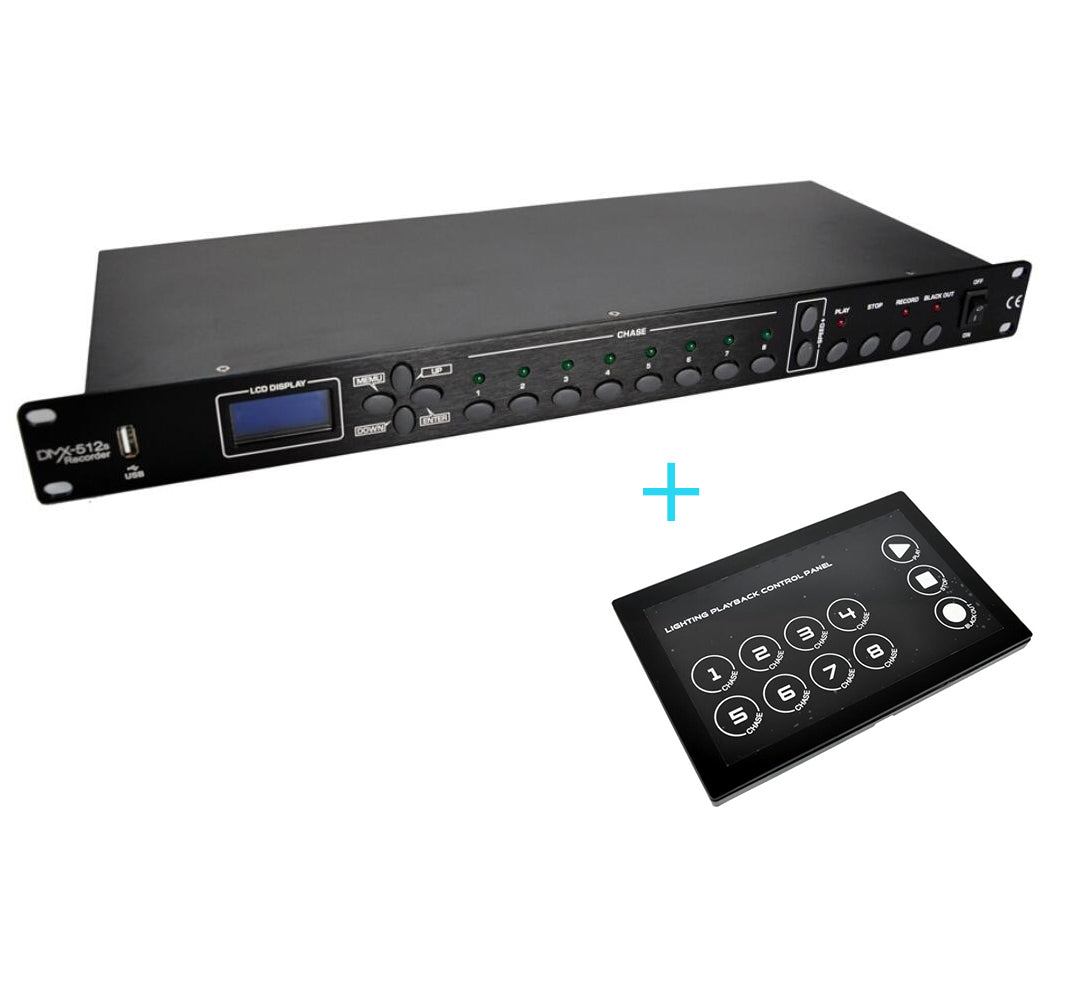

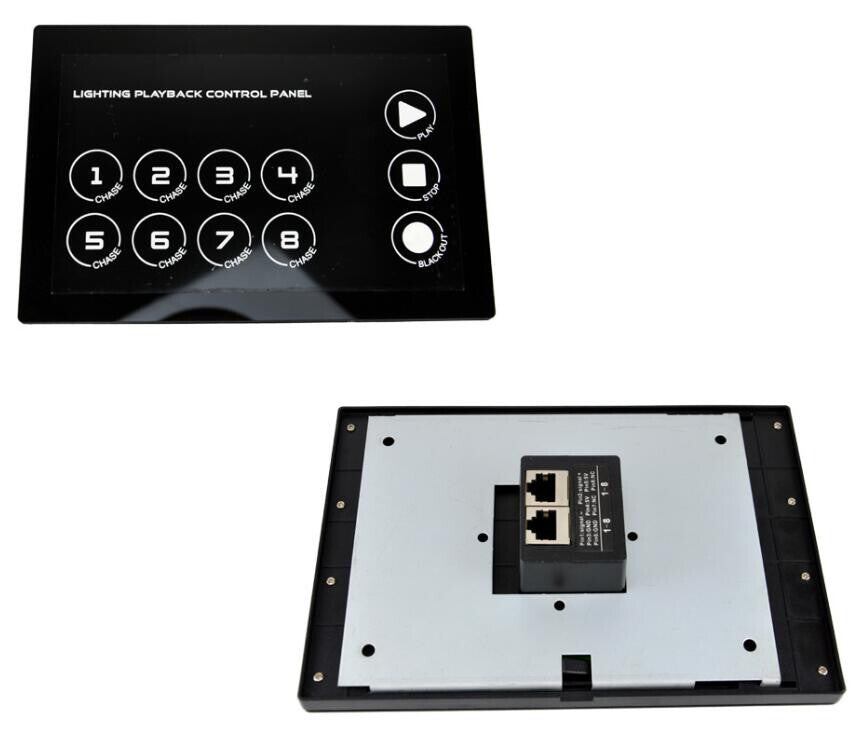

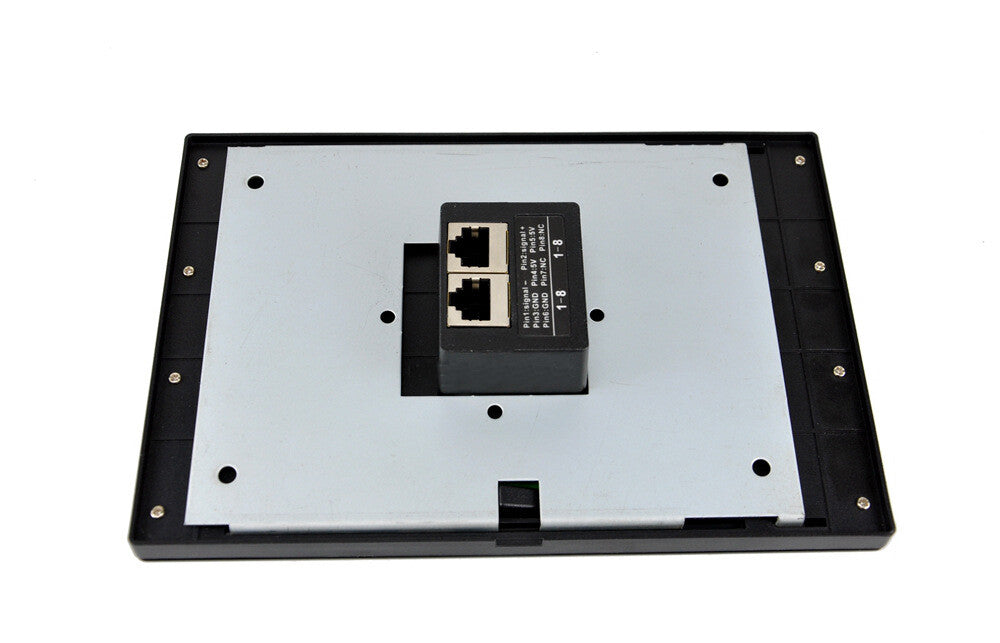

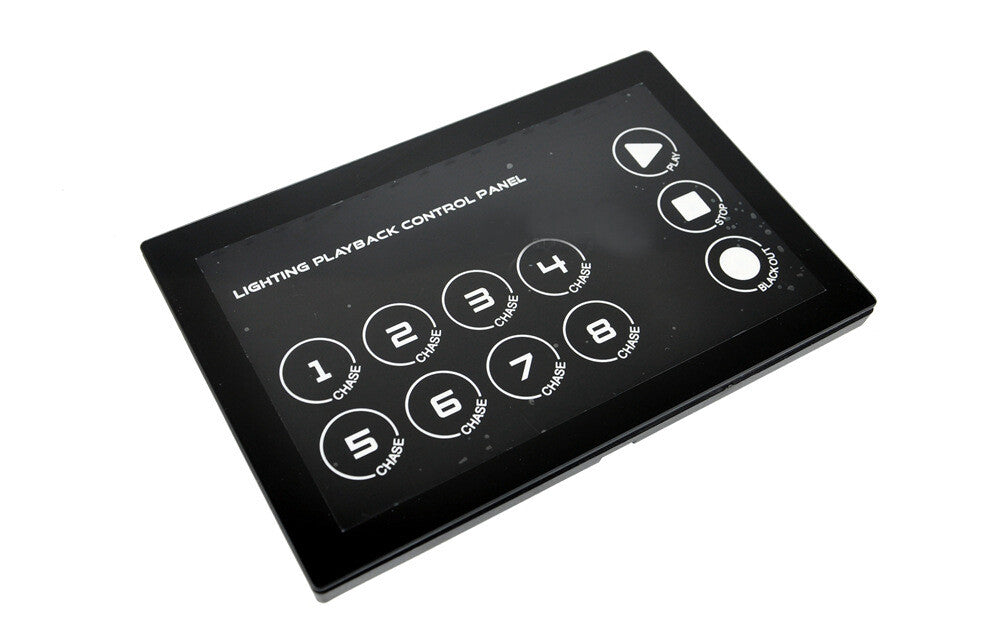

Control Board Specification:

Choose 1 among the 8 different programs
Touch way: capacitance
Panel material: tempered glass
Installation: 86 type bottom box
