19W Original XHP50.2 MAX 2000 Lumen 3000K 6000K LED Chip Bulb 16mm/20mm Copper PCB for DIY Flashlight
Regular price
$13.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
TIPS:Buy more,more cheaper

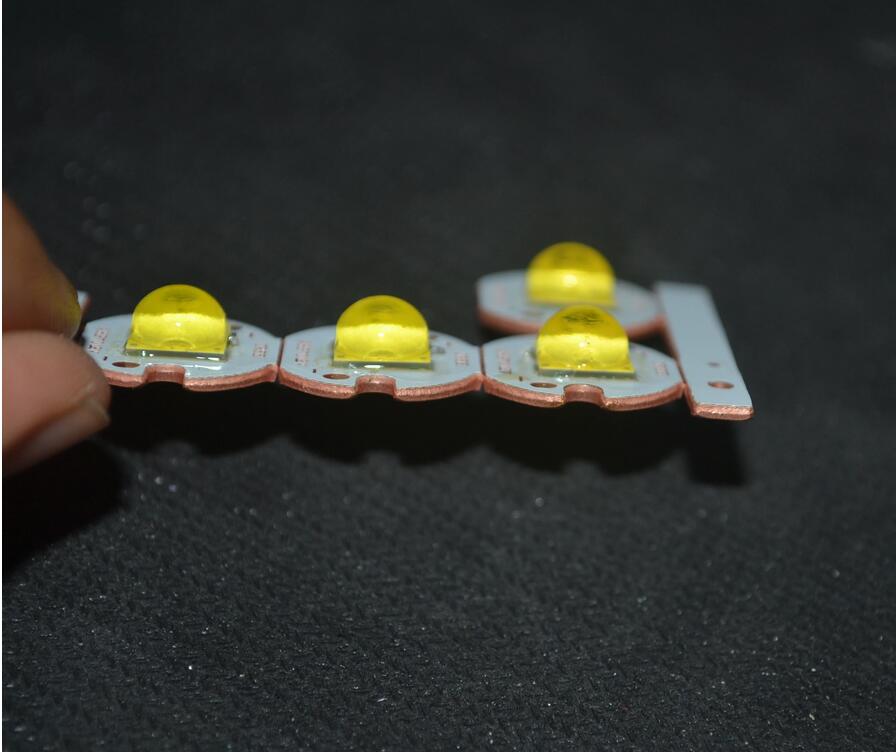

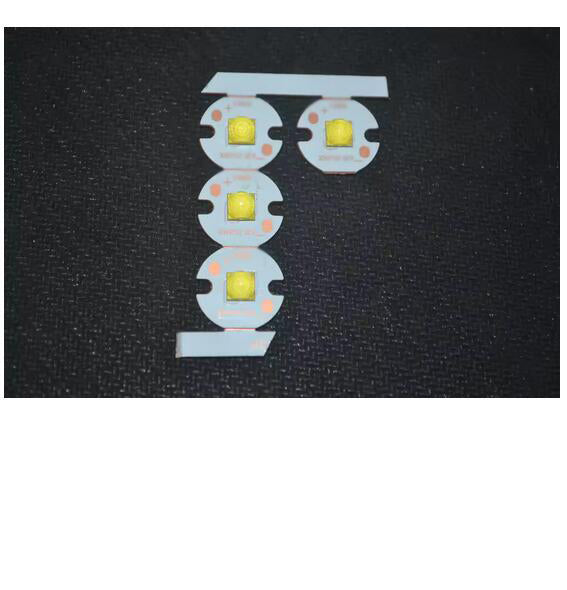

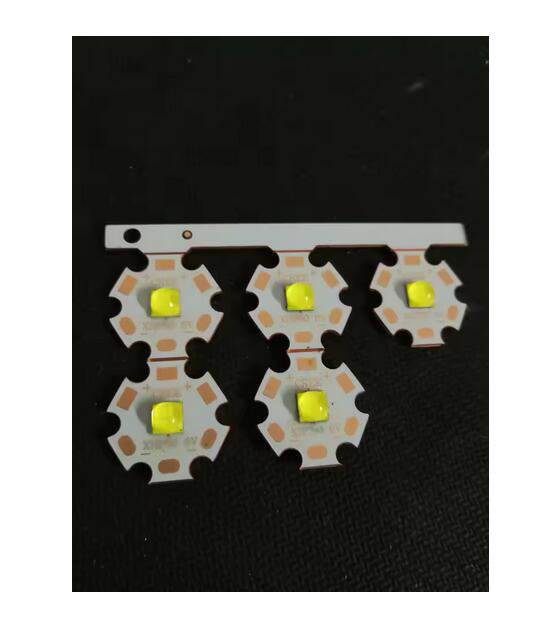

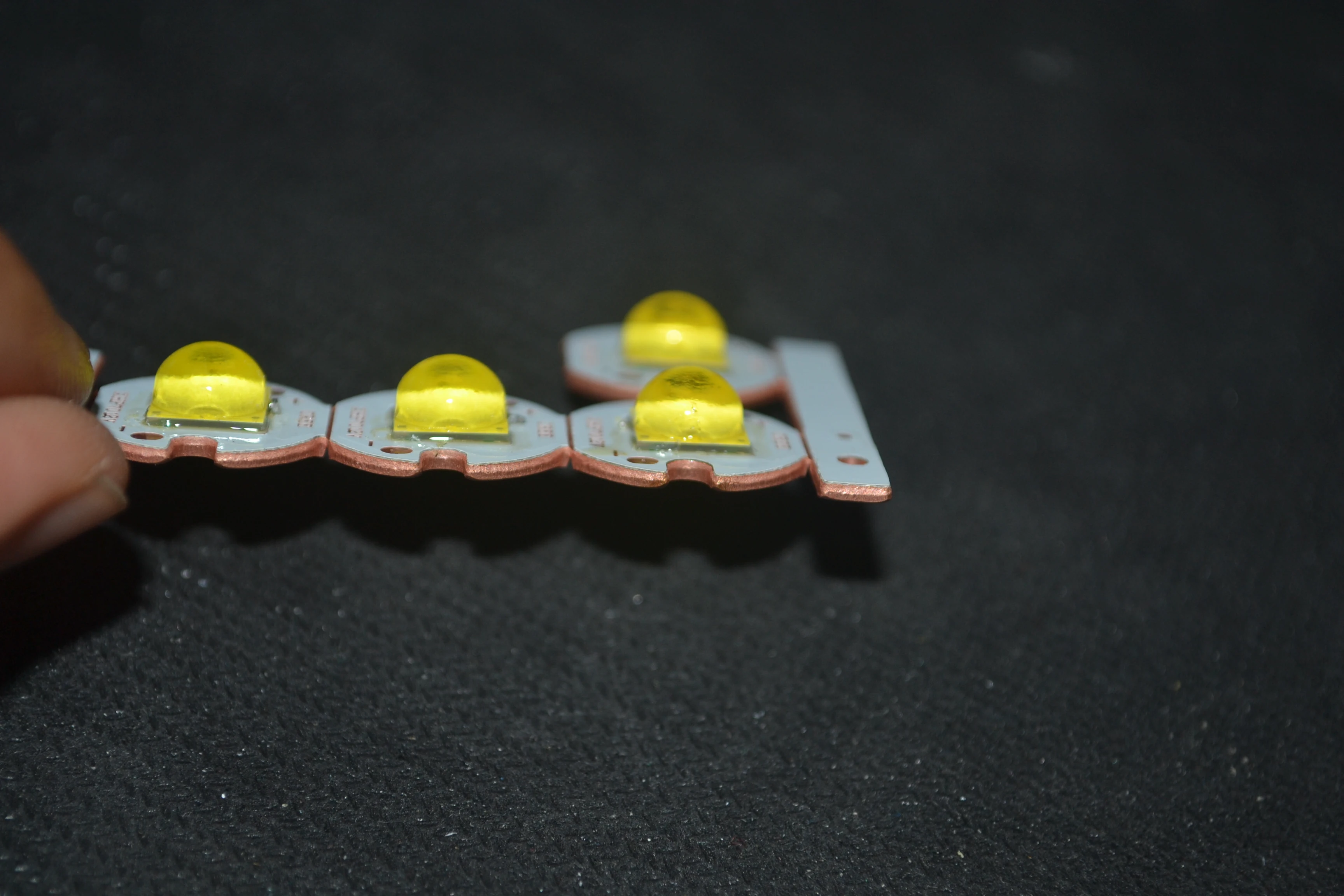

NOTE :It is Original XHP50.2 LED, Use 20mm/16mm Copper PCB
Can used for flashlight,bike light,headlamp etc
XHP50.2 Specification

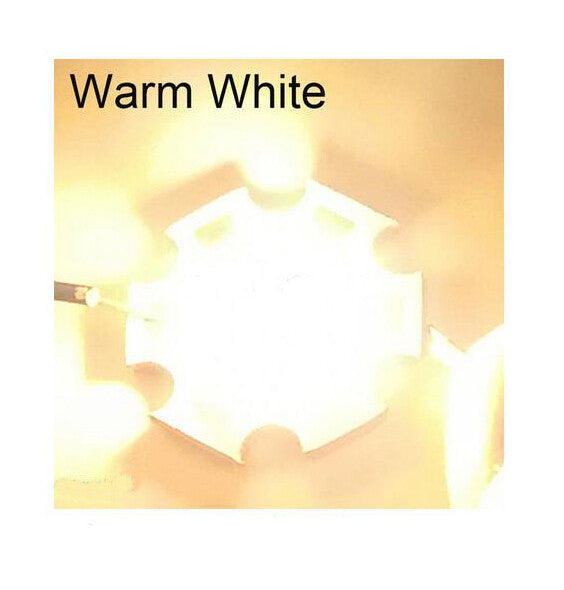

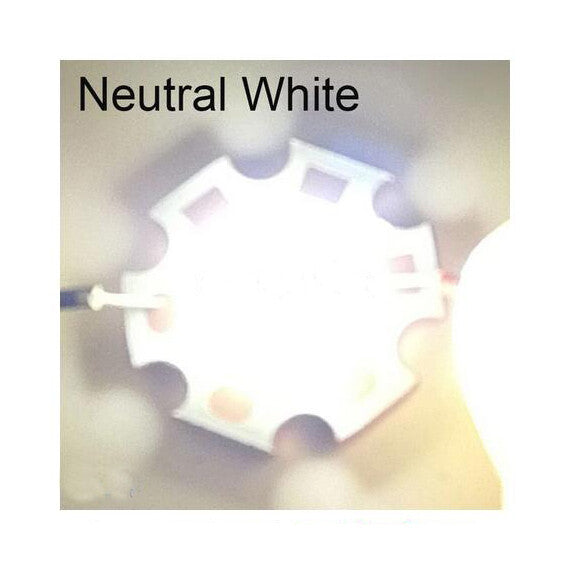

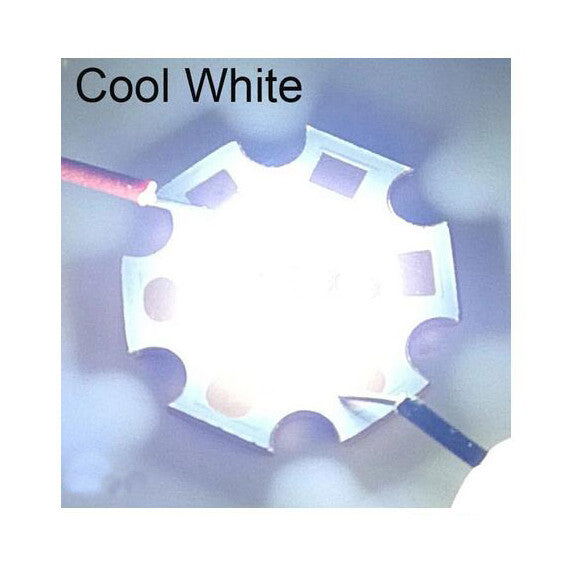

Emitter Color : Warm White,Nautural White,Cool White
Color Temperature ：3000-3500k,4000-4500k,6000-6500k

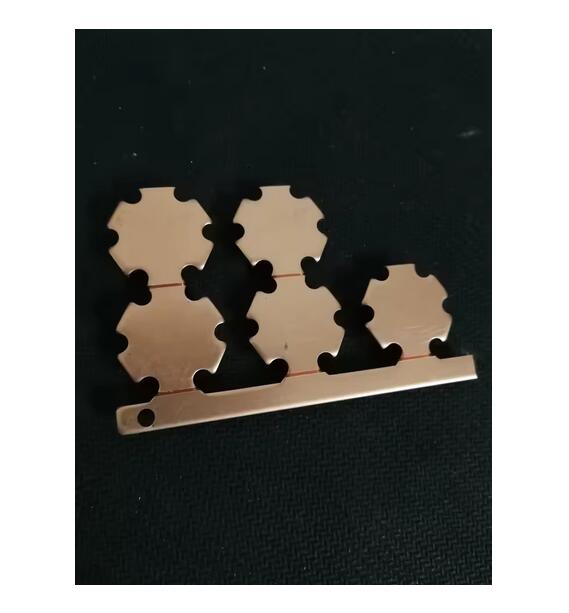

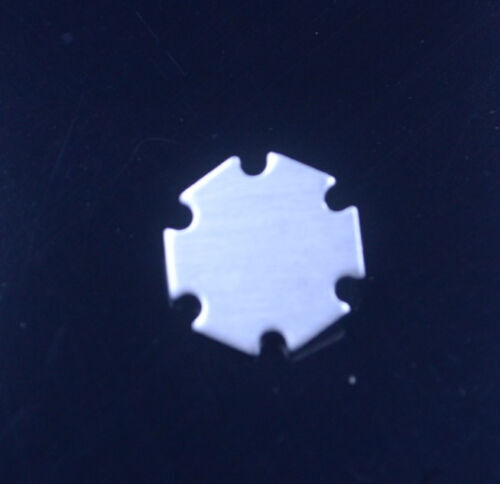

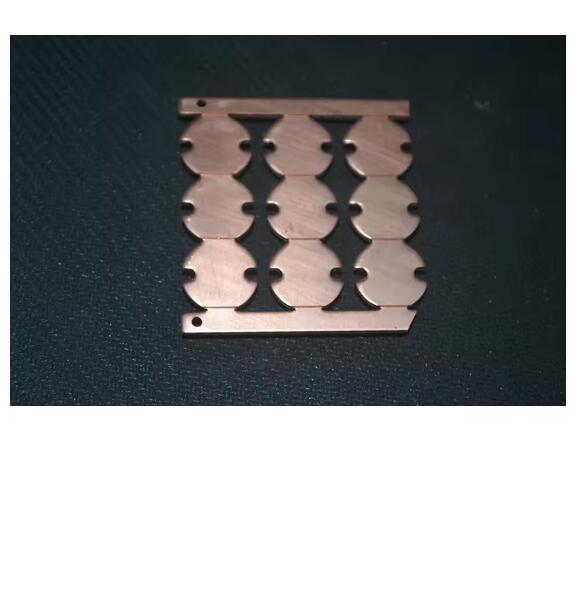

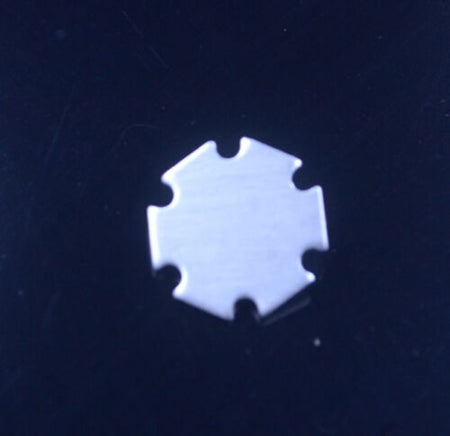

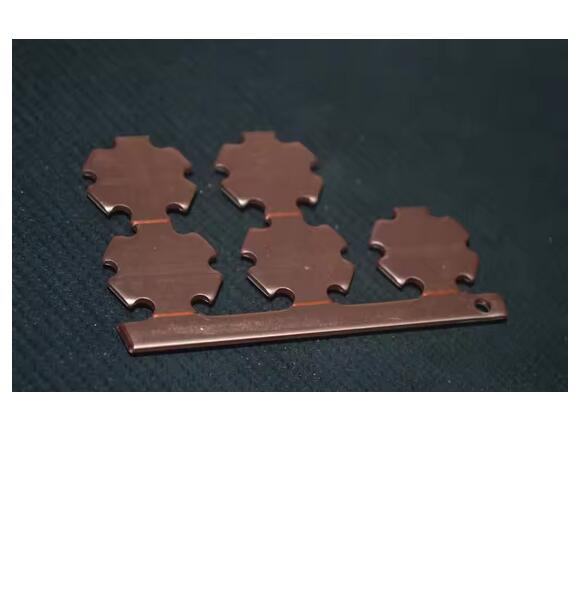

Base : .16mm or 20mm Copper Board
Size (mm x mm) :5.0 x 5.0
Maximum drive current (A) :1.5 (12-V)
Maximum power (W):19
Light output :Up to 2546 lm @ 19 W
Typical forward voltage (V) - white :5.75 @ 1400 mA (12-V)
Viewing angle (degrees) :120
Binning :85°C, ANSI White, 2-, 3- & 5-Step
Thermal resistance (°C/W) :1.2
Reflow-solderable :Yes – JEDEC J-STD-020C-compatible
RoHS and REACH-compliant :Yes
UL-recognized component :Yes – Level 4 Enclosure Consideration
