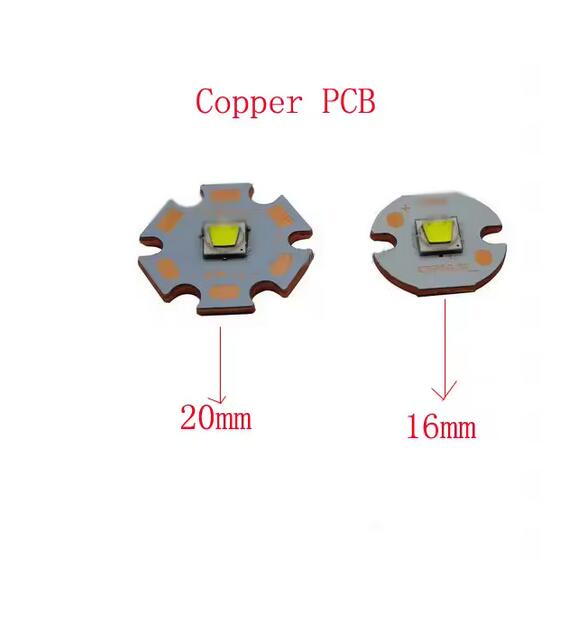

10W Original L2 1000 Lumen 3000K 6000K LED Chip Bulb 16mm/20mm Copper PCB for DIY Flashlight
Regular price
$11.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
TIPS:Buy more,more cheaper
10W L2 Highest-Performing, Commercially Available, Single-Die LED
Delivering
breakthrough lumen output and efficacy in the package, the L2 LED
is the highest-performing, commercially available, single-die LED.
Built on the SC⊃3; Technology Platform, the L2 LED delivers up to
20% more lumens and lumens-per-watt and double the lumens-per-dollar of
the original The L2 LED offers the unique combination of high
efficacy and high lumen output at high drive currents, delivering an
unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.
Emitted Color :Cool White/Neutral White/Warm White
Color Temperature: 6500K/4500K/3000K
DC Forward Voltage (VF): 2.9-3.75Vdc
DC Forward Current (IF): 3.0A
Power: Real 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Packing List:
1x 10w L2 LED
